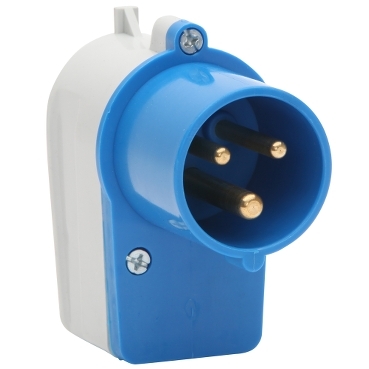

56 Series BALS Plug Angled 16A 230V 1-Phase 3-Round Pin IP44, Blue
Item Number: PDLBALS231
Datasheet
Close
Specifications
Design
Range
56 Series
Product brand
Clipsal
Product or component type
plug
Colour tint
orange
Physical
Pin number
3
[in] rated current
16 A
[ue] rated operational voltage
230 V
Quantity per set
set of 4
Type of packing
carton
Ip degree of protection
IP44
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
plastic
Others
Legacy weee scope
In
Outside of Europe
Weee label
N/A
Package 1 bare product quantity
1
Network frequency
50 Hz
Network number of phases
1 phase
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 cm
Package 1 width
8 cm
Package 1 length
8.5 cm
Package 1 weight
0.127 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
