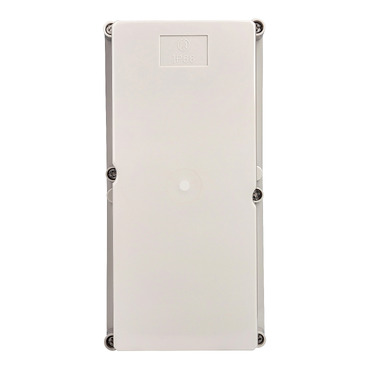

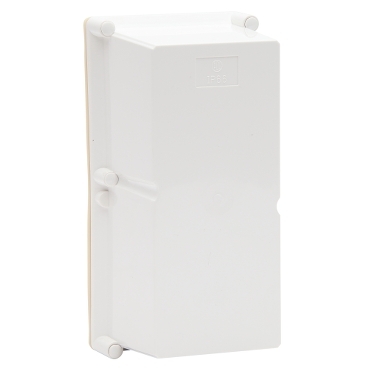

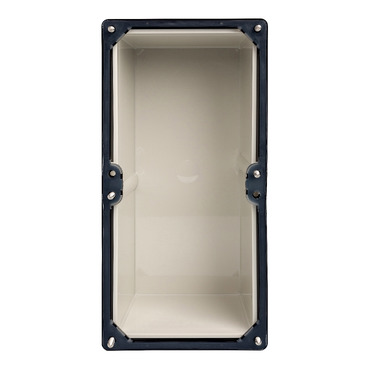

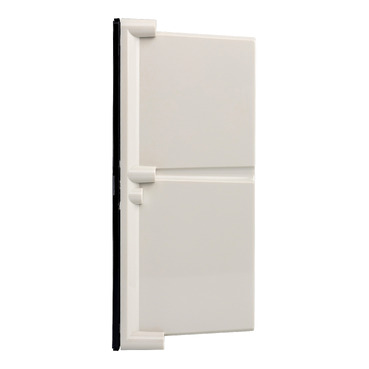

56 Series Enclosure Lid Deep 2-Gang IP66 | Grey

Item Number: PDL56DL2LEGY

Grey 1 PCE 1
Charcoal Grey 1 PCE 1
Chemical Resistant Orange 1 PCE 1
Chemical Resistant White 1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width191 mm

Height95 mm

Depth63 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175042263	CL
2	BB1	9416175250927	CL
4	CAR	19416175042260	CL
1	PCE	9416175042270	GY
2	BB1	9416175248092	GY
4	CAR	19416175042277	GY
1	PCE	9416175076305	RO
2	BB1	9416175251702	RO
4	CAR	19416175076302	RO
1	PCE	9416175225178	RW
2	BB1	9416175251719	RW
4	CAR	19416175225175	RW

Specifications

Design

Range of product	56 Series™
Product or component type	lid
Colour tint	grey
Surface finish	gloss

Physical

Width	191 mm
Height	95 mm
Depth	63 mm
Number of gangs	2 x 1 gang
Mounting mode	surface mounted
Fixing center	84 x 84 mm
Quantity per set	set of 2
Type of packing	carton
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2506007EN
Eu rohs directive	Compliant

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Main colour tint	grey
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.5 cm
Package 1 width	8.5 cm
Package 1 length	19 cm
Package 1 weight	213 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.840367231677237
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.06306630470197716
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.013796065636535768
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.5213311372791589
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.5978640000000004
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
