56 Series Enclosure Lid Extra Deep 1-Gang IP66

Home ProductsIndustrial56 SeriesEnclosure Lid

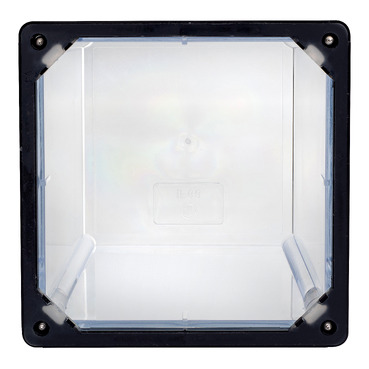

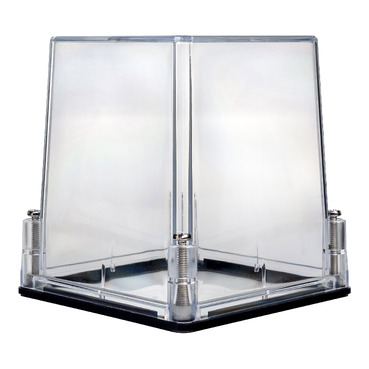

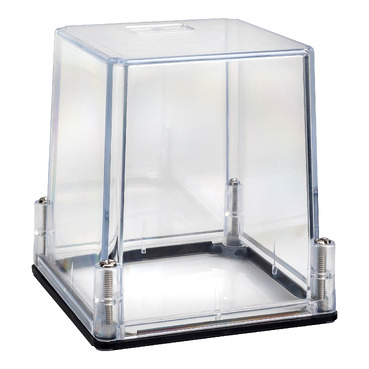

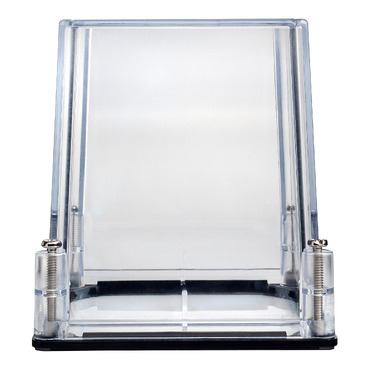

56 Series Enclosure Lid Extra Deep 1-Gang IP66 | Grey

Item Number: PDL56XDL1LEGY

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width95 mm

Height icon

Height95 mm

Depth icon

Depth100 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

56 Series™

Product or component type

lid

Colour tint

grey

Surface finish

gloss

Physical

Width

95 mm

Height

95 mm

Depth

100 mm

Number of gangs

1 gang

Mounting mode

surface mounted

Fixing center

84 x 84 mm

Quantity per set

set of 4

Type of packing

carton

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2506007EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Warranty duration(in months) bmecat

18

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.5 cm

Package 1 width

9.5 cm

Package 1 length

10 cm

Package 1 weight

141 g

Total lifecycle carbon footprint

3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.5562994350539457

Carbon footprint of the manufacturing phase [a1 to a3]

0.6 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.04174811719708347

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.009132606829819452

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.3451065274946545

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

2.5978640000000004

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

China rohs label

1

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
