Home ProductsIndustrial56 SeriesFlush Surround

56 Series Flush Surround 4-Gang 2x2 IP66 | Chemical Resistant White

Item Number: PDL56FA4RW

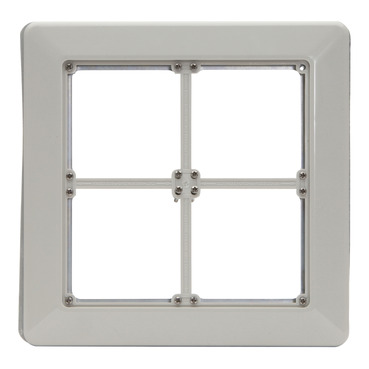

Grey 1 PCE 1

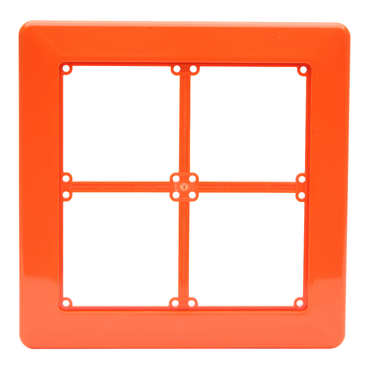

Chemical Resistant Orange 1 PCE 1
Chemical Resistant White 1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175200489	GY
5	CAR	19416175200486	GY
1	PCE	9416175218842	RO
5	CAR	19416175218849	RO
1	PCE	9416175218880	RW
5	CAR	19416175218887	RW

Specifications

Design

Range

56 Series

Product brand

Clipsal

Product or component type

surface cover

Colour tint

grey

Surface finish

gloss

Physical

Installation direction

vertical

Length

253 mm

Width

253 mm

Depth

12 mm

Number of gangs

2 x 2 gangs

Mounting mode

surface mounted

Fixing center

84 x 180 mm

Quantity per set

set of 5

Type of packing

plastic bag

Ip degree of protection

IP66

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP130202EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PVC (polyvinyl chloride)

Others

Legacy weee scope

Package 1 bare product quantity

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

1.5 cm

Package 1 width

25.0 cm

Package 1 length

25.0 cm

Package 1 weight

0.503 kg

Total lifecycle carbon footprint

3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.9845291902988274

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.14893122659668784

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.032579441385809815

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Carbon footprint of the end-of-life phase [c1 to c4]

1.2311247044667462

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

Pvc free

Halogen-free status

Halogen free product

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

2.5978640000000004

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Halogen-free status

Halogen free product

Pvc free

End of life manual availability

N/A

Take-back

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
Product Brochures
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

56 Series Brochure

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.9 MB

ZIP

PDL56FA4GY EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

PDL56FA4GY EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

PDL56FA4GY REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

PDL56FA4GY REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

PDL56FA4RW EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

PDL56FA4RW EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

Colour Chemical Resistant White (RW)
