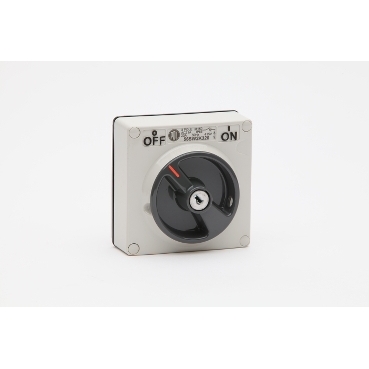

56 Series Keylock Switch 20A 415V 3-Pole IP66 | Grey

Name: PDL56SW2K320LE 56 Series Industrial | PDL
Brand: PDL
SKU: PDL56SW2K320LEGY
Availability: InStoreOnly

Width95 mm

Height95 mm

Depth62 mm

Qty	UoM	EAN	Colour
1	PCE	9416175092633	GY

Specifications

Design

Physical

Quantity per set	set of 4
Type of packing	carton
Number of poles	3
Control type	rotary
Installation direction	vertical
Width	95 mm
Height	95 mm
Depth	62 mm
Rated current	20 A
[ue] rated operational voltage	415 V
Number of gangs	1 gang
Mounting mode	surface mounted
Fixing center	84 x 84 mm
Ip degree of protection	IP66
Ambient air temperature for operation	-40...55 °C
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1208009EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Motor m-rating as3133	M150
[ui] rated insulation voltage	660 V
Network frequency	50 Hz
Network number of phases	3 phases
Cable cross section	1...16 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.5 cm
Package 1 width	9.5 cm
Package 1 length	6.2 cm
Package 1 weight	296.0 g
Total lifecycle carbon footprint	6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.5826670567943144
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.08875231627343781
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.05433186947759807
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.4192
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.7255955262357107
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Total lifecycle carbon footprint	5.87054676878106
End of life manual availability	N/A
Warranty (in months)	18
