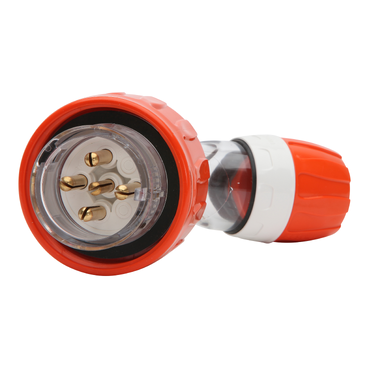

56 Series, Plug, Angled, 16A, 500V, 5-Round Pin, Quick Connect

56 Series, Plug, Angled, 16A, 500V, 5-Round Pin, Quick Connect

Item Number: PDL56PA516QC

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

56 Series

Product or component type

plug

Colour tint

orange

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Rated current

16 A

[ue] rated operational voltage

500 V

Pin number

5

Ambient air temperature for operation

-40...55 °C

Quantity per set

set of 4

Type of packing

carton

Ip degree of protection

IP66

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP121020EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Network number of phases

3 phases

Cable cross section

7...16 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

0.3 kg
Show all specifications
