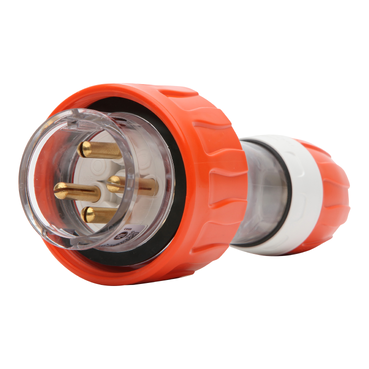

56 Series Plug Straight, 16A, 500V, 4-Round Pin, Quick Connect
Item Number: PDL56P416QC
Datasheet
Close
Specifications
Design
Range
56 Series
Product or component type
plug
Colour tint
orange
Surface finish
gloss
Physical
Rated current
16 A
[ue] rated operational voltage
500 V
Pin number
4
Ambient air temperature for operation
-40...55 °C
Quantity per set
set of 4
Type of packing
carton
Ip degree of protection
IP66
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP121020EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
plastic
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Network frequency
50 Hz
Network number of phases
3 phases
Cable cross section
7...16 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.290 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
