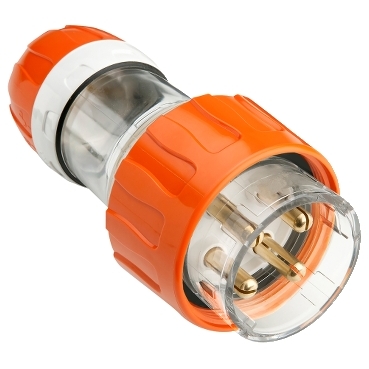

56 Series Plug Straight 40A 500V 3-Phase 4-Round Pin IP66, Orange
Item Number: PDL56P440
Datasheet
Close
Specifications
Design
Range
56 Series
Product or component type
plug
Colour tint
orange
Surface finish
gloss
Physical
Rated current
40 A
[ue] rated operational voltage
500 V
Pin number
4
Ambient air temperature for operation
-40...55 °C
Quantity per set
set of 4
Type of packing
carton
Ip degree of protection
IP66
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP121020EN
Circularity profile
N/A
Material
Material
plastic
Others
Commercial status history
- SESA301466
- Thu Aug 17 21:46:00 EDT 2023
- From Import Local
- From 18 to 19
Package 1 bare product quantity
1
Network frequency
50 Hz
Network number of phases
3 phases
Cable cross section
9...29 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7.69 cm
Package 1 width
7.64 cm
Package 1 length
16.75 cm
Package 1 weight
445.5 g
