Datasheet
Close
Specifications
Design
Range of product
56 Series™
Product or component type

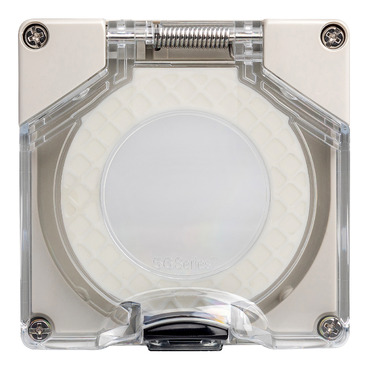

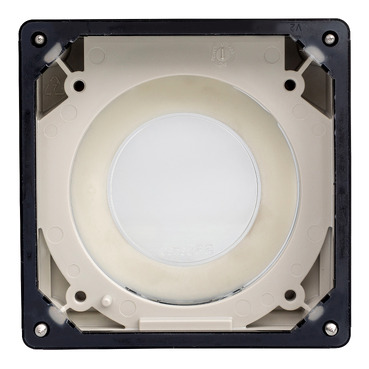

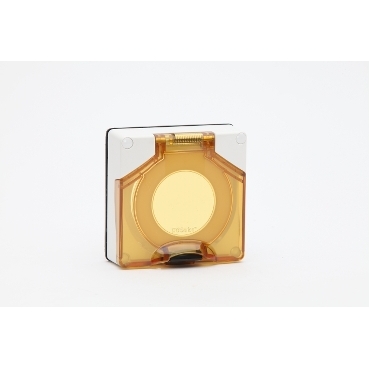

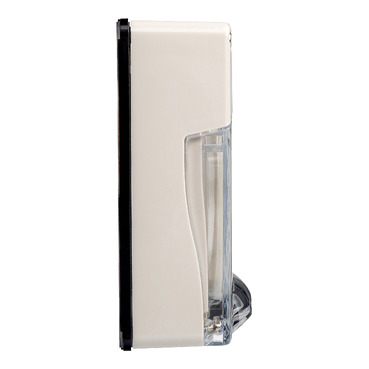

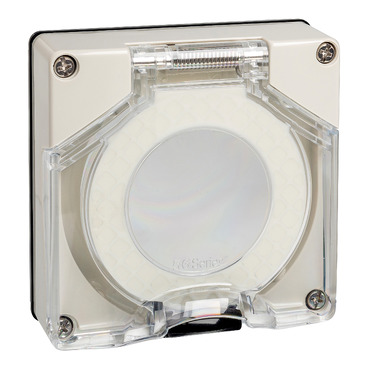

socket cover
Colour tint
grey
Surface finish
gloss
Physical
Installation direction
vertical
Length
95 mm
Width
95 mm
Depth
35 mm
Number of gangs
1 gang
Mounting mode
surface mounted
Fixing center
84 x 84 mm
Ip degree of protection
IP66
Ambient air temperature for operation
-40...55 °C
Quantity per set
set of 4
Type of packing
carton
Eu rohs directive
Compliant with Exemptions
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
plastic
Others
Commercial status history
SESA301466 | Thu Aug 17 21:46:00 EDT 2023 | From Import Local | From 18 to 19
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 cm
Package 1 width
9.5 cm
Package 1 length
9.5 cm
Package 1 weight
0.12 kg
