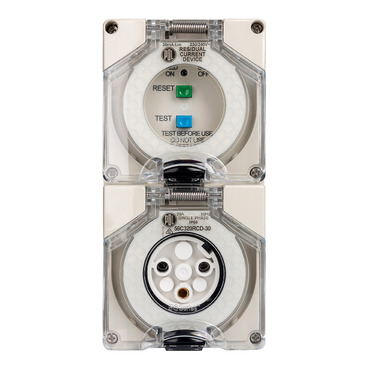

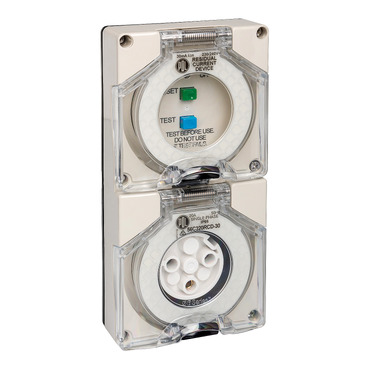

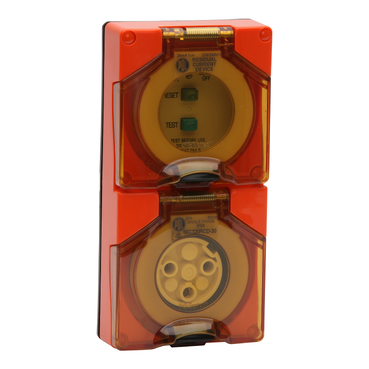

56 Series RCD Protected Socket 20A 240V 3-Round Pin IP66 | Chemical Resistant Orange
Item Number: PDL56C320RCD30LERO
Datasheet
Close
Specifications
Design
| Range of product | 56 Series™ |
|---|---|
| Product or component type | residual current device switch |
| Colour tint | grey |
| Surface finish | gloss |
Physical
| Control type | push-button |
|---|---|
| Installation direction | vertical |
| Width | 95 mm |
| Height | 191 mm |
| Rated current | 20 A |
| [ue] rated operational voltage | 230/240 V |
| Number of gangs | 2 gangs |
| Pin number | 3 |
| Mounting mode | surface mounted |
| Fixing center | 84 x 180 mm |
| Ip degree of protection | IP66 |
| Ambient air temperature for operation | -10...40 °C |
| Quantity per set | set of 2 |
| Type of packing | carton |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|---|
| Device composition | round pin |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Quick Start Guide
-

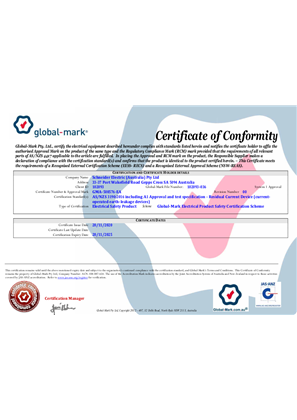

Declaration of Conformity (Sustainability)
