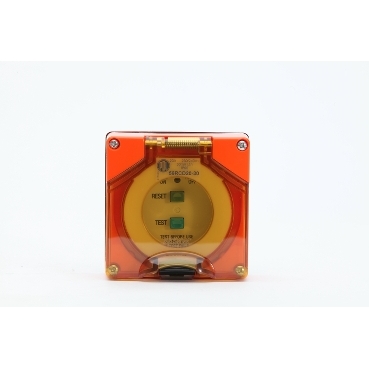

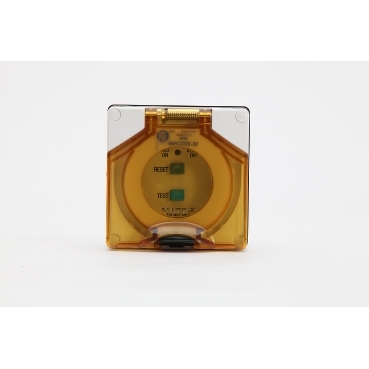

56 Series Residual Current Device Module 30mA 20A 240V IP66

Home ProductsIndustrial56 SeriesResidual Current Device Module

56 Series Residual Current Device Module 30mA 20A 240V IP66 | Chemical Resistant White

Item Number: PDL56RCD2030LERW

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

56 Series™

Product or component type

residual current device switch

Colour tint

grey

Surface finish

gloss

Physical

Control type

push-button

Installation direction

vertical

Width

95 mm

Height

191 mm

Rated current

20 A

[ue] rated operational voltage

230/240 V

Number of gangs

1 gang

Pin number

3

Mounting mode

surface mounted

Fixing center

84 x 84 mm

Ip degree of protection

IP66

Ambient air temperature for operation

-10...40 °C

Quantity per set

set of 4

Type of packing

carton

Electrical insulation class

class II

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Device composition

round pin

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Network frequency

50 Hz

Network number of phases

1 phase

Earth-leakage protection class

type A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6 cm

Package 1 width

9.5 cm

Package 1 length

9.5 cm

Package 1 weight

254 g

Sustainable packaging

No

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Quick Start Guide

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
56 Series Brochure
ZIP

56 Series Brochure

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.9 MB
56 Series sealing instructions using enclosures to ensure full IP66 installation
ZIP

56 Series sealing instructions using enclosures to ensure full IP66 installation

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 360.3 KB

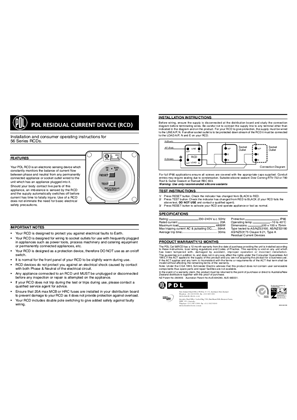

56 Series installation and consumer operating instructions for RCDs
