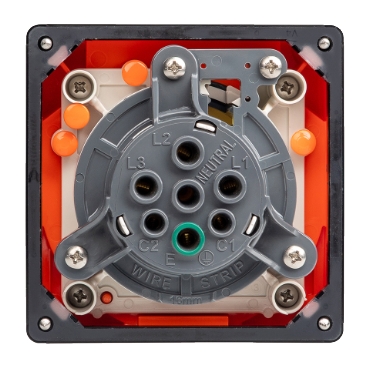

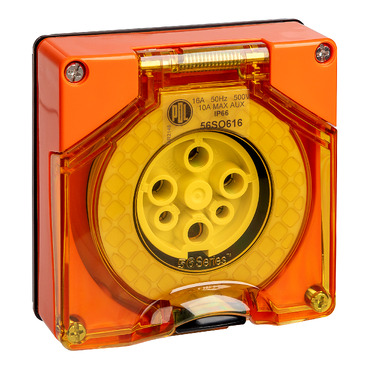

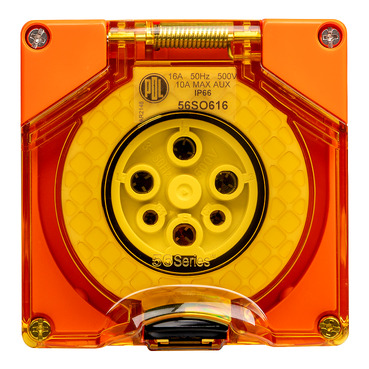

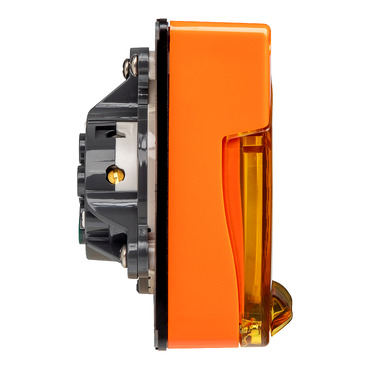

56 Series Socket 16A 500V 3-Phase 6-Round Pin IP66

56 Series Socket 16A 500V 3-Phase 6-Round Pin IP66 | Resistant Orange

Item Number: PDL56SO616LERO

Datasheet

Product Dimensions

Width icon

Width95 mm

Height icon

Height95 mm

Depth icon

Depth35 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

56 Series™

Product brand

PDL

Product or component type

socket-outlet

Colour tint

grey

Surface finish

gloss

Physical

Quantity per set

set of 4

Type of packing

carton

Installation direction

vertical

Width

95 mm

Height

95 mm

Depth

35 mm

Rated current

16 A

[ue] rated operational voltage

500 V

Number of gangs

1 gang

Pin number

6

Mounting mode

surface mounted

Fixing center

84 x 84 mm

Ip degree of protection

IP66

Ambient air temperature for operation

-40...55 °C

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Material

Material

polycarbonate

Device composition

round pin

Others

Commercial status history

SESA301466 | Thu Nov 30 07:54:00 EST 2023 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Network frequency

50 Hz

Network number of phases

3 phases

Cable cross section

1...10 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6 cm

Package 1 width

9.5 cm

Package 1 length

9.5 cm

Package 1 weight

0.268 kg
