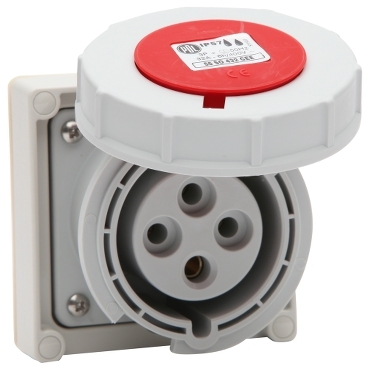

56 Series Socket CCEE 32A 400V 3-Phase 4-Round Pin IP57 Red | Grey
Item Number: PDL56SO432CCEELEGY
Specifications
Design
| Range of product | 56 Series™ |
|---|---|
| Product brand | PDL |
| Product or component type | socket-outlet |
| Colour tint | grey |
| Surface finish | gloss |
Physical
| Quantity per set | set of 4 |
|---|---|
| Type of packing | carton |
| Installation direction | vertical |
| Width | 95 mm |
| Height | 95 mm |
| Depth | 35 mm |
| Rated current | 32 A |
| [ue] rated operational voltage | 500 V |
| Number of gangs | 1 gang |
| Pin number | 4 |
| Mounting mode | surface mounted |
| Fixing center | 84 x 84 mm |
| Ip degree of protection | IP66 |
| Ambient air temperature for operation | -40...55 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2511024EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate |
|---|---|
| Device composition | round pin |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Quick Start Guide
-
Certificates (MSDS)
-
Declaration of Conformity
-
Declaration of Conformity (Sustainability)
ZIP
PDL56SO432CCEELEGY EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
PDL56SO432CCEELEGY EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
PDL56SO432CCEELEGY REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
PDL56SO432CCEELEGY REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Frequently Asked Questions
Is there a Reefer or Container socket available in the PDL 56 series?
Hide ShowA Container(Reefer) socket can be ordered with part number PDL56SO432CCEELEGY, These will suit standard 56 series enclosures.
