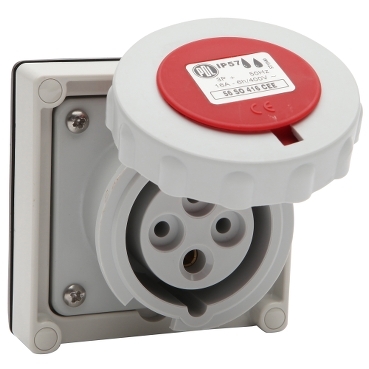

56 Series Socket CEE 16A 400V 3-Phase 4-Round Pin IP57 Red | Grey
Item Number: PDL56SO416CEELEGY
Specifications
Design
Range of product
56 Series™
Product brand
PDL
Product or component type
socket-outlet
Colour tint
grey
Surface finish
gloss
Physical
Quantity per set
set of 4
Type of packing
carton
Installation direction
vertical
Width
95 mm
Height
95 mm
Depth
35 mm
Rated current
16 A
[ue] rated operational voltage
500 V
Number of gangs
1 gang
Pin number
4
Mounting mode
surface mounted
Fixing center
84 x 84 mm
Ip degree of protection
IP66
Ambient air temperature for operation
-40...55 °C
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
polycarbonate
Device composition
round pin
Others
Commercial status history
- SESA301466
- Thu Aug 17 21:46:00 EDT 2023
- From Import Local
- From 18 to 19
Package 1 bare product quantity
1
Network frequency
50 Hz
Network number of phases
3 phases
Cable cross section
1...10 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.5 cm
Package 1 width
9.5 cm
Package 1 length
3.5 cm
Package 1 weight
522 g
