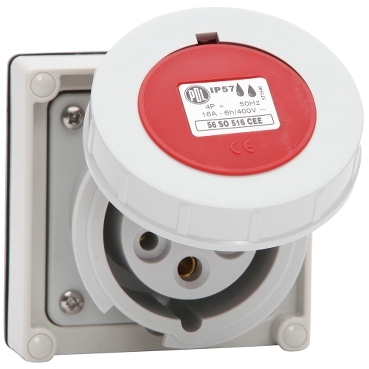

56 Series Socket CEE 16A 400V 3-Phase 5-Round Pin IP57 Red | Grey
Item Number: PDL56SO516CEELEGY
Specifications
Design
| Range of product | 56 Series™ |
|---|---|
| Product brand | PDL |
| Product or component type | socket-outlet |
| Colour tint | grey |
| Surface finish | gloss |
Physical
| Quantity per set | set of 4 |
|---|---|
| Type of packing | carton |
| Installation direction | vertical |
| Width | 95 mm |
| Height | 95 mm |
| Depth | 35 mm |
| Rated current | 16 A |
| [ue] rated operational voltage | 500 V |
| Number of gangs | 1 gang |
| Pin number | 5 |
| Mounting mode | surface mounted |
| Fixing center | 84 x 84 mm |
| Ip degree of protection | IP66 |
| Ambient air temperature for operation | -40...55 °C |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate |
|---|---|
| Device composition | round pin |
