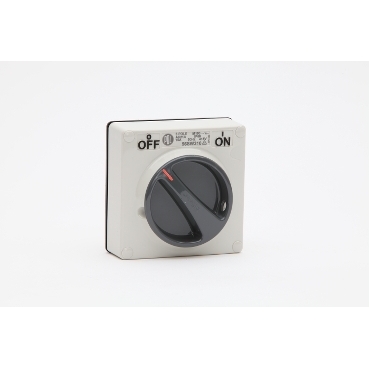

Chemical Resistant Grey 1 PCE 1

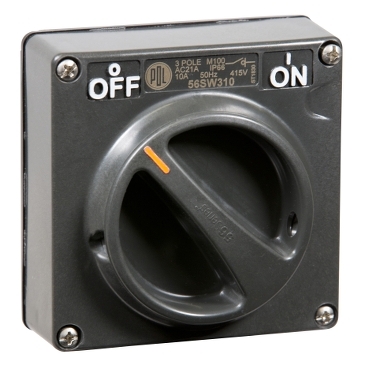

Grey 1 PCE 1
Chemical Resistant Orange 1 PCE 1

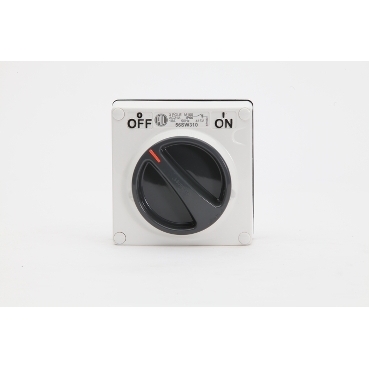

Chemical Resistant White 1 PCE 1

Home ProductsIndustrial56 SeriesSwitch

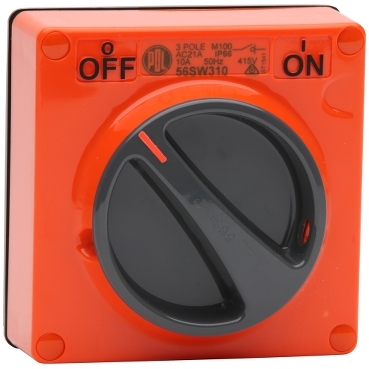

56 Series Switch 10A 415V 3-Pole IP66 | Chemical Resistant Orange

Item Number: PDL56SW310LERO

Chemical Resistant Grey 1 PCE 1
Grey 1 PCE 1
Chemical Resistant Orange 1 PCE 1
Chemical Resistant White 1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width95.0 mm

Height95.0 mm

Depth69.0 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175247118	CG
4	BB1	9416175248016	CG
8	CAR	19416175247115	CG
1	PCE	9416175082528	GY
4	BB1	9416175251580	GY
1	PCE	9416175091322	RO
4	BB1	9416175251597	RO
8	CAR	19416175091329	RO
1	PCE	9416175169724	RW
4	BB1	9416175251603	RW
8	CAR	19416175169721	RW

Specifications

Design

Range	56 Series
Product or component type	switch
Colour	body: grey rotary handle: dark grey
Market segment	utility small commercial industry

Physical

Control type	rotary knob
[ue] rated operational voltage	500 V AC 50 Hz
[ie] rated operational current	10 A (AC-21A) at 500 V AC 10 A (AC-23A) at 500 V AC
Connections - terminals	screw terminals cable(s) 1-16 mm² rigid or stranded
Height	95.0 mm
Width	95.0 mm
Depth	69.0 mm
Net weight	0.235 kg
Standards	AS/NZS 3133
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Device short name	PDL56SW310LECG
Poles description	3P
Rotary handle padlocking	2 padlocks 8-8 mm
[ithe] conventional enclosed thermal current	10 A
Making capacity	100 A at 500 V AC-21A 100 A at 500 V AC-23A
[icm] rated short-circuit making capacity	1 kA at 500 V AC-21A 1 kA at 500 V AC-23A
[icw] rated short-time withstand current	1.5 kA at 500 V duration: 1 s
Breaking capacity	0.2 kA at 500 V (AC-21A) 0.2 kA at 500 V (AC-23A)
Suitability for isolation	yes
Targeted country	New Zealand Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6 cm
Package 1 width	9.5 cm
Package 1 length	9.5 cm
Package 1 weight	235 g
Total lifecycle carbon footprint	20 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.3285185915097655
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.05432966742307123
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.03272664750548505
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	16.93097502582249
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.22556029944287417
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	19.57211023170369
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	5
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
