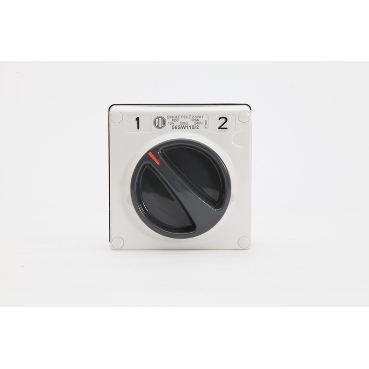

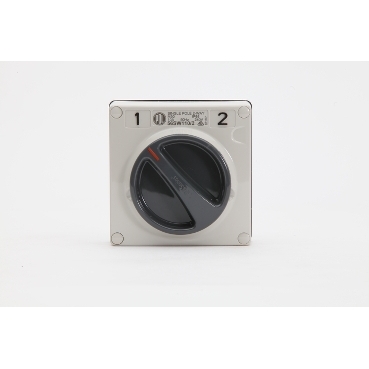

56 Series Switch 2-Way 10A 240V 1-Pole IP66

Home ProductsIndustrial56 SeriesSwitch

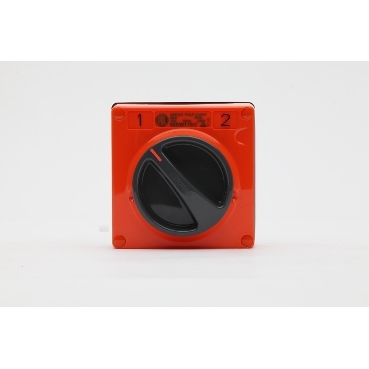

56 Series Switch 2-Way 10A 240V 1-Pole IP66 | Chemical Resistant Orange

Item Number: PDL56SW1102LERO

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width95.0 mm

Height icon

Height95.0 mm

Depth icon

Depth62.0 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

56 Series

Product or component type

switch

Colour

  • body: grey
  • rotary handle: dark grey

Market segment

  • utility
  • small commercial
  • industry

Physical

Control type

rotary knob

[ue] rated operational voltage

250 V AC 50 Hz

Connections - terminals

screw terminals cable(s) 1.5-6 mm² rigid or stranded

Height

95.0 mm

Width

95.0 mm

Depth

62.0 mm

Net weight

0.164 kg

Standards

AS/NZS 3133

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120809EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Device short name

PDL56SW1102LECG

Poles description

1P

Rotary handle padlocking

2 padlocks 8-8 mm

[ithe] conventional enclosed thermal current

10 A

Targeted country

  • New Zealand
  • Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.5 cm

Package 1 width

9.5 cm

Package 1 length

9.5 cm

Package 1 weight

159 g

Sustainable packaging

No

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
