56 Series Switch 32A 415V 3-Pole IP66

Home ProductsIndustrial56 SeriesSwitch

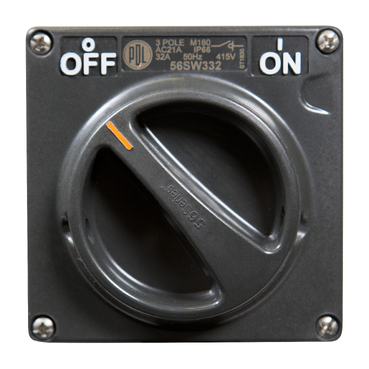

56 Series Switch 32A 415V 3-Pole IP66 | Chemical Resistant Grey

Item Number: PDL56SW332LECG

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width95.0 mm

Height icon

Height95.0 mm

Depth icon

Depth69.0 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

56 Series

Product or component type

switch

Colour

  • rotary handle: dark grey
  • body: grey

Market segment

  • utility
  • small commercial
  • industry

Physical

Control type

rotary knob

[ue] rated operational voltage

500 V AC 50 Hz

[ie] rated operational current

  • 32 A (AC-21A) at 500 V AC
  • 32 A (AC-23A) at 500 V AC

Connections - terminals

screw terminals cable(s) 1-16 mm² rigid or stranded

Height

95.0 mm

Width

95.0 mm

Depth

69.0 mm

Net weight

0.236 kg

Standards

AS/NZS 3133

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120809EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Outside of Europe

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

In

Weee label

N/A

Weee applicability

Finished product

Device short name

PDL56SW332LECG

Poles description

3P

Rotary handle padlocking

2 padlocks 8-8 mm

[ithe] conventional enclosed thermal current

32 A

Making capacity

  • 320 A at 500 V AC-21A
  • 320 A at 500 V AC-23A

[icm] rated short-circuit making capacity

  • 1 kA at 500 V AC-21A
  • 1 kA at 500 V AC-23A

[icw] rated short-time withstand current

1.5 kA at 500 V duration: 1 s

Breaking capacity

  • 0.2 kA at 500 V (AC-21A)
  • 0.2 kA at 500 V (AC-23A)

Suitability for isolation

yes

Targeted country

  • New Zealand
  • Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6 cm

Package 1 width

9.5 cm

Package 1 length

9.5 cm

Package 1 weight

236 g

Sustainable packaging

No

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
