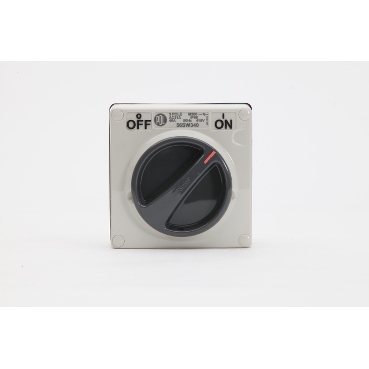

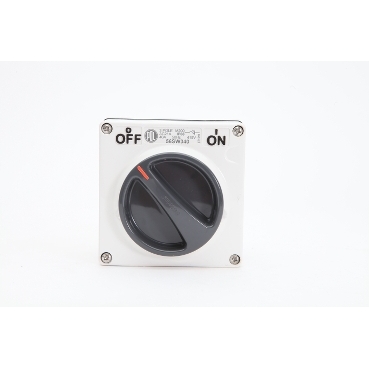

56 Series Switch 40A 500V 3-Pole IP66

56 Series Switch 40A 500V 3-Pole IP66 | Grey

Item Number: PDL56SW340LEGY

Datasheet

Product Dimensions

Width icon

Width95 mm

Height icon

Height95 mm

Depth icon

Depth48 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

56 Series™

Product or component type

rotary switch

Colour tint

grey

Surface finish

gloss

Physical

Quantity per set

set of 4

Type of packing

carton

Number of poles

3

Control type

rotary

Installation direction

vertical

Width

95 mm

Height

95 mm

Depth

48 mm

Rated current

40 A

[ue] rated operational voltage

415 V

Number of gangs

1 gang

Mounting mode

surface mounted

Fixing center

84 x 84 mm

Ip degree of protection

IP66

Ambient air temperature for operation

-40...55 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120809EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Motor m-rating as3133

M250

Network frequency

50 Hz

Network number of phases

3 phases

Cable cross section

6...35 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

9.5 cm

Package 1 length

9.5 cm

Package 1 weight

333 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

16.434565114878694
