56 Series Switch Base Mount Motor Rated 2-Gang 63A 415V 3-Pole IP66 | Grey

Item Number: PDL56SWB3632KGLEGY

Grey 1 PCE 1

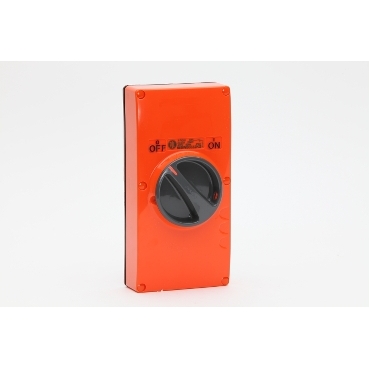

Chemical Resistant Orange 1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width95 mm

Height190 mm

Depth66 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175239281	GY
2	CAR	19416175239288	GY
1	PCE	9416175239298	RO
2	CAR	19416175239295	RO

Specifications

Design

Range of product	56 Series™
Product or component type	rotary switch
Colour tint	grey
Surface finish	gloss

Physical

Control type	rotary
Installation direction	vertical
Width	95 mm
Height	190 mm
Depth	66 mm
Rated current	63 A
[ue] rated operational voltage	240 V
Number of gangs	2 gangs
Number of poles	3
Mounting mode	surface mounted
Fixing center	180 X 84 mm
Ip degree of protection	IP66
Ambient air temperature for operation	-40...55 °C
Quantity per set	set of 1
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Nominal power	18.5 kW 22 kW
Utilisation category	AC-21A AC-3
Network frequency	50 Hz
Motor m-rating as3133	M300
Cable cross section	16 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.5 cm
Package 1 width	10.5 cm
Package 1 length	21.5 cm
Package 1 weight	0.484 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	22 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.795757439535007
Carbon footprint of the manufacturing phase [a1 to a3]	5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.11189599588411267
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.06740296762831814
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	16.93097502582249
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.4645582337461749
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	22.370589662616105
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	5
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
