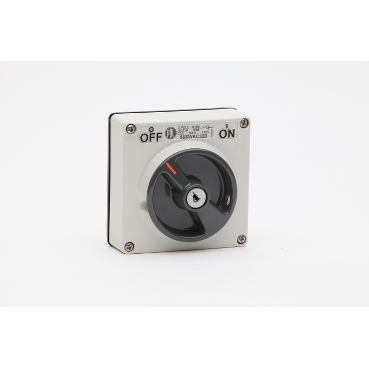

56 Series Switch Common Key 20A 415V 3-Pole IP66 | Grey

Name: PDL56SWKC320LE 56 Series Industrial | PDL
Brand: PDL
SKU: PDL56SWKC320LEGY
Availability: InStoreOnly

Width95 mm

Height95 mm

Depth68 mm

Qty	UoM	EAN	Colour
1	PCE	9416175223136	GY
4	BB1	9416175249112	GY
8	CAR	19416175223133	GY

Specifications

Design

Physical

Quantity per set	set of 4
Type of packing	carton
Number of poles	3
Control type	rotary
Installation direction	vertical
Width	95 mm
Height	95 mm
Depth	68 mm
Rated current	20 A
[ue] rated operational voltage	415 V
Number of gangs	1 gang
Mounting mode	surface mounted
Fixing center	84 x 84 mm
Ip degree of protection	IP66
Ambient air temperature for operation	-40...55 °C
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1208009EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Weee label	N/A
	Outside of Europe
Package 1 bare product quantity	1
Motor m-rating as3133	M150
[ui] rated insulation voltage	660 V
Network frequency	50 Hz
Network number of phases	3 phases
Cable cross section	1...16 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.5 cm
Package 1 width	9.5 cm
Package 1 length	6.8 cm
Package 1 weight	1 kg
Total lifecycle carbon footprint	12 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	5.346848164845658
Carbon footprint of the manufacturing phase [a1 to a3]	5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.2998389063291818
Carbon footprint of the distribution phase [a4]	0.3 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.1835536130999935
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.4192
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	2.4513362372828067
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Total lifecycle carbon footprint	11.70077692155764
End of life manual availability	N/A
Warranty (in months)	18
