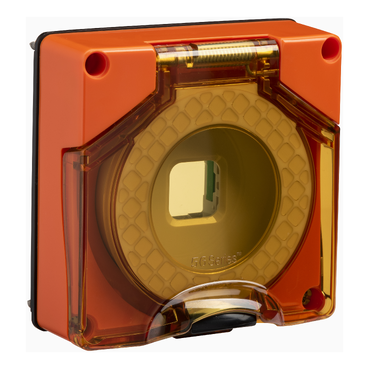

Chemical Resistant Orange 1 PCE 1

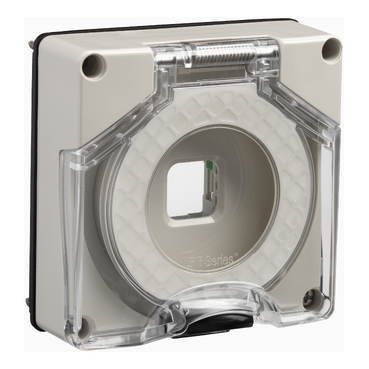

Chemical Resistant White 1 PCE 1

Home ProductsIndustrial56 SeriesSwitch Cover

56 Series Switch Cover 1-Gang 1-Aperture IP66 -Suits 300 Modules | Chemical Resistant Grey

Item Number: PDL56MO3001LECG

Chemical Resistant Grey 1 PCE 1
Grey 1 PCE 1
Chemical Resistant Orange 1 PCE 1
Chemical Resistant White 1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175266041	CG
1	PCE	9416175266010	GY
1	PCE	9416175266027	RO
1	PCE	9416175266034	RW

Specifications

Design

Range of product	56 Series™
Product or component type	cover
Colour tint	grey
Surface finish	gloss

Physical

Installation direction	vertical
Width	107 mm
Height	101 mm
Number of gangs	1 gang
Mounting mode	surface mounted
Fixing center	63.6 x 63.6 mm
Ip degree of protection	IP66
Quantity per set	set of 8
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	ABS (acrylonitrile butadiene-styrene)

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Diameter	39 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.2 cm
Package 1 width	9.6 cm
Package 1 length	9.6 cm
Package 1 weight	216.0 g
Total lifecycle carbon footprint	19 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.140255386238763
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.04993705601439738
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.030080663239084125
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	16.93097502582249
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.20732350927515242
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	19.358571640589886
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	2
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
