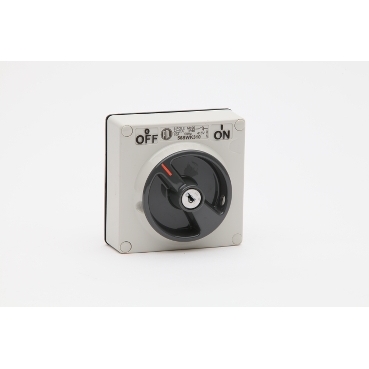

56 Series Switch Keylock 10A 415V 3-Pole IP66 | Grey

Name: PDL56SWK310LE 56 Series Industrial | PDL
Brand: PDL
SKU: PDL56SWK310LEGY
Availability: InStoreOnly

Width95 mm

Height95 mm

Depth48 mm

Qty	UoM	EAN	Colour
1	PCE	9416175130298	GY
4	BB1	9416175249075	GY

Specifications

Design

Physical

Quantity per set	set of 4
Type of packing	carton
Number of poles	3
Control type	rotary
Installation direction	vertical
Width	95 mm
Height	95 mm
Depth	48 mm
Rated current	10 A
[ue] rated operational voltage	415 V
Number of gangs	1 gang
Mounting mode	surface mounted
Fixing center	84 x 84 mm
Ip degree of protection	IP66
Ambient air temperature for operation	-40...55 °C
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1208009EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Motor m-rating as3133	M100
[ui] rated insulation voltage	660 V
Network frequency	50 Hz
Network number of phases	3 phases
Cable cross section	1...16 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.5 cm
Package 1 width	9.5 cm
Package 1 length	4.8 cm
Package 1 weight	0.308 kg
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.6468292347724622
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.092350383149388
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.05653451283479799
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.8548
Carbon footprint of the use phase [b2, b3, b4, b6]	0.9 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.7550115610831043
Carbon footprint of the end-of-life phase [c1 to c4]	0.8 kg CO2 eq.
Total lifecycle carbon footprint	3.4055256918397525
End of life manual availability	N/A
Warranty (in months)	18
