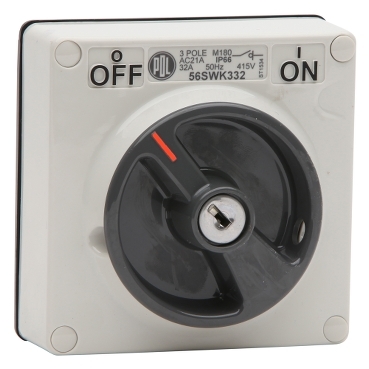

56 Series Switch Keylock 32A 415V 3-Pole IP66 | Grey

Name: PDL56SWK332LE 56 Series Industrial | PDL
Brand: PDL
SKU: PDL56SWK332LEGY
Availability: InStoreOnly

Width95 mm

Height95 mm

Depth68 mm

Qty	UoM	EAN	Colour
1	PCE	9416175040696	GY
4	BB1	9416175248214	GY
8	CAR	19416175040693	GY

Specifications

Design

Physical

Quantity per set	set of 4
Type of packing	carton
Number of poles	3
Control type	rotary
Installation direction	vertical
Width	95 mm
Height	95 mm
Depth	68 mm
Rated current	32 A
[ue] rated operational voltage	415 V
Number of gangs	1 gang
Mounting mode	surface mounted
Fixing center	84 x 84 mm
Ip degree of protection	IP66
Ambient air temperature for operation	-40...55 °C
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1208009EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Motor m-rating as3133	M180
[ui] rated insulation voltage	660 V
Network frequency	50 Hz
Network number of phases	3 phases
Cable cross section	1...16 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.5 cm
Package 1 width	9.5 cm
Package 1 length	6.8 cm
Package 1 weight	0.269 kg
Total lifecycle carbon footprint	11 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.4383021563434817
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0806566658025499
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.049375921923898246
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	8.753152
Carbon footprint of the use phase [b2, b3, b4, b6]	9 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.659409447829075
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Total lifecycle carbon footprint	10.980896191899005
End of life manual availability	N/A
Warranty (in months)	18
