Specifications
Design
Range of product
56 Series™
Product or component type

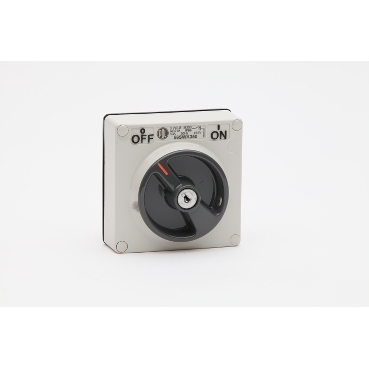

rotary switch
Colour tint
grey
Surface finish
gloss
Physical
Quantity per set
set of 4
Type of packing
carton
Number of poles
3
Control type
rotary
Installation direction
vertical
Width
95 mm
Height
95 mm
Depth
68 mm
Rated current
50 A
[ue] rated operational voltage
415 V
Number of gangs
1 gang
Mounting mode
surface mounted
Fixing center
84 x 84 mm
Ip degree of protection
IP66
Ambient air temperature for operation
-40...55 °C
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Motor m-rating as3133
M250
[ui] rated insulation voltage
660 V
Network frequency
50 Hz
Network number of phases
3 phases
Cable cross section
6...35 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1 kg
