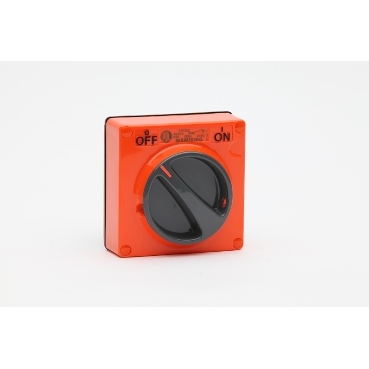

56 Series Switch Motor Rated 63A 500V 3-Pole IP66

Home ProductsIndustrial56 SeriesSwitch

56 Series Switch Motor Rated 63A 500V 3-Pole IP66 | Grey

Item Number: PDL56SW363KGLEGY

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width95 mm

Height icon

Height190 mm

Depth icon

Depth66 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

56 Series™

Product or component type

rotary switch

Colour tint

grey

Surface finish

gloss

Physical

Quantity per set

set of 4

Type of packing

carton

Number of poles

3

Control type

rotary

Installation direction

vertical

Width

95 mm

Height

190 mm

Depth

66 mm

Rated current

63 A

[ue] rated operational voltage

500 V

Mounting mode

surface mounted

Fixing center

180 X 84 mm

Ip degree of protection

IP66

Ambient air temperature for operation

-40...55 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120809EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

[ui] rated insulation voltage

690 V

Network frequency

50 Hz

Network number of phases

3 phases

Cable cross section

1.5...16 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.5 cm

Package 1 width

9.5 cm

Package 1 length

9 cm

Package 1 weight

300 g

Total lifecycle carbon footprint

36 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.604054449453697

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.08995167189875454

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.05506608392999804

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

33.927012

Carbon footprint of the use phase [b2, b3, b4, b6]

34 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.7354008711848419

Carbon footprint of the end-of-life phase [c1 to c4]

0.7 kg CO2 eq.

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

36.411485076467294

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
