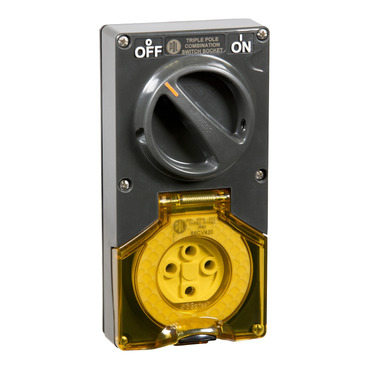

56 Series Switched Socket 10A 500V 4-Round Pin 2-Gang 3-Pole IP66 | Chemical Resistant Grey
Item Number: PDL56CV410LECG
Specifications
Design
| Range | 56 Series |
|---|---|
| Product or component type | switch and socket-outlet |
| Colour |
|
| Market segment |
|
Physical
| Control type | rotary knob |
|---|---|
| Mounting mode | surface mounted |
| [in] rated current | 10 A |
| Pin number | 4 pins |
| [ue] rated operational voltage | 500 V |
| Protection type | without protection |
| Connections - terminals | screw terminals |
| Net weight | 0.477 kg |
| Height | 190.0 mm |
| Width | 95.0 mm |
| Depth | 60.0 mm |
| Standards |
|
| Ambient air temperature for operation | -25...75 °C |
| Ambient air temperature for storage | -25...75 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate |
|---|---|
| Contacts material | pins: brass |
