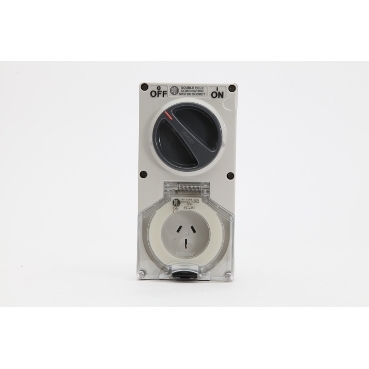

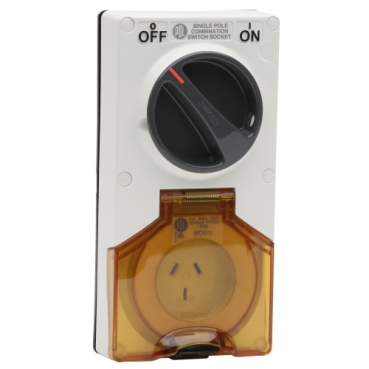

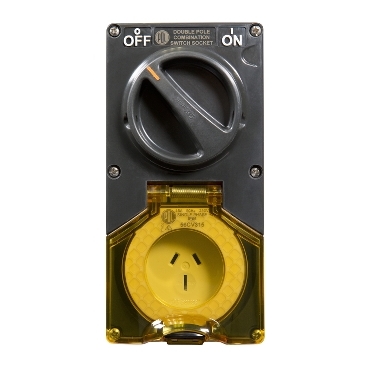

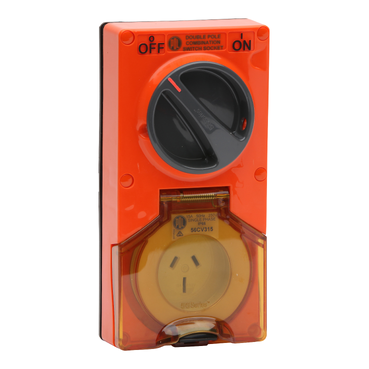

56 Series Switched Socket 15A 250V 3-Flat Pin 2-Gang 1-Pole IP66, Chemical-Resistant Grey

56 Series Switched Socket 15A 250V 3-Flat Pin 2-Gang 1-Pole IP66, Chemical-Resistant Grey | Resistant Orange

Item Number: PDL56CV315LERO

Datasheet

Product Dimensions

Width icon

Width95.0 mm

Height icon

Height190.0 mm

Depth icon

Depth60.0 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

56 Series

Product or component type

switch and socket-outlet

Colour

body: grey (RAL 7035)|rotary handle: dark grey

Market segment

small commercial|industry|utility

Physical

Control type

rotary knob

Mounting mode

surface mounted

[in] rated current

15 A

Pin number

3 pins

[ue] rated operational voltage

250 V

Protection type

without protection

Connections - terminals

screw terminals

Net weight

0.335 kg

Height

190.0 mm

Width

95.0 mm

Depth

60.0 mm

Standards

AS/NZS 3123|AS/NZS 3133

Ambient air temperature for operation

-25...75 °C

Ambient air temperature for storage

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate

Contacts material

pins: phosphor bronze

Others

Package 1 bare product quantity

1

Device short name

PDL56CV315LECG

Plug, socket category

low voltage

Poles description

1P + N + E

Rotary handle padlocking

2 padlocks 8-8 mm

Network type

AC

Outlet standard deviation

Australian/New Zealand

Shape of pin

flat

Network frequency

50 Hz

Cable cross section

1.5...6 mm²

Targeted country

Australia|New Zealand

Quality labels

RCM

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6 cm

Package 1 width

9.5 cm

Package 1 length

19 cm

Package 1 weight

414 g
