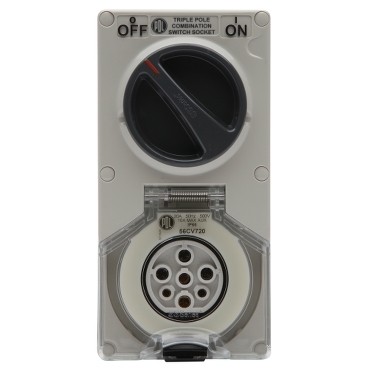

56 Series Switched Socket 16A 500V 7-Round Pin 2-Gang 3-Pole IP66 | Chemical Resistant Orange
Item Number: PDL56CV716LERO
Datasheet
Close
Specifications
Design
| Range of product | 56 Series |
|---|---|
| Product or component type | switched socket |
| Colour tint | grey |
| Surface finish | gloss |
Physical
| Control type | rotary |
|---|---|
| Installation direction | vertical |
| Rated current | 16 AX |
| [ue] rated operational voltage | 500 V |
| Number of gangs | 2 gangs |
| Pin number | 7 |
| Number of poles | 3 |
| Ip degree of protection | IP66 |
| Fixing center | 84 x 180 mm |
| Device mounting | surface |
| Width | 95 mm |
| Height | 191 mm |
| Quantity per set | set of 2 |
| Type of packing | carton |
| Rohs exemption information | Yes |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) UV stabilised |
|---|---|
| Device composition | round pin |
