56 Series Switched Socket 32A 500V 5-Round Pin 2-Gang 3-Pole IP66

Home ProductsIndustrial56 SeriesSwitched Socket

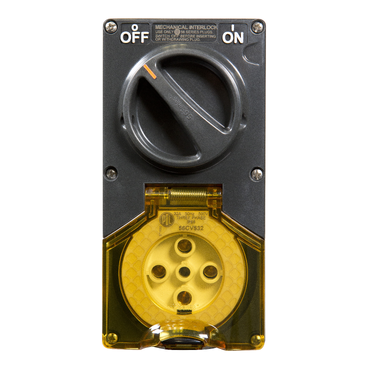

56 Series Switched Socket 32A 500V 5-Round Pin 2-Gang 3-Pole IP66 | Chemical Resistant White

Item Number: PDL56CV532LERW

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width95.0 mm

Height icon

Height190.0 mm

Depth icon

Depth60.0 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

56 Series

Product or component type

switch and socket-outlet

Colour

  • body: grey (RAL 7035)
  • rotary handle: dark grey

Market segment

  • small commercial
  • industry
  • utility

Physical

Control type

rotary knob

Mounting mode

surface mounted

[in] rated current

32 A

Pin number

5 pins

[ue] rated operational voltage

500 V

Protection type

without protection

Connections - terminals

screw terminals

Net weight

0.571 kg

Height

190.0 mm

Width

95.0 mm

Depth

60.0 mm

Standards

  • AS/NZS 3133
  • AS/NZS 3123

Ambient air temperature for operation

-25...75 °C

Ambient air temperature for storage

-25...75 °C

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate

Contacts material

pins: brass

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Device short name

PDL56CV532LECG

Plug, socket category

low voltage

Poles description

3P + N + E

Rotary handle padlocking

2 padlocks 8-8 mm

Network type

AC

Outlet standard deviation

Australian/New Zealand

Shape of pin

tubular

Network frequency

50 Hz

Cable cross section

1...16 mm²

Targeted country

  • Australia
  • New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

9.5 cm

Package 1 length

19 cm

Package 1 weight

571 g

Sustainable packaging

No

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Take-back

No

Warranty (in months)

18
Show all specifications
