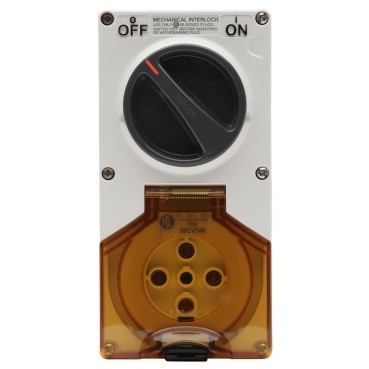

56 Series Switched Socket 40A 500V 5-Round Pin 2-Gang 3-Pole IP66

56 Series Switched Socket 40A 500V 5-Round Pin 2-Gang 3-Pole IP66 | Grey

Item Number: PDL56CV540LEGY

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

56 Series

Product or component type

switched socket

Colour tint

grey

Surface finish

gloss

Physical

Control type

rotary

Installation direction

vertical

Rated current

40 A

[ue] rated operational voltage

500 V

Number of gangs

2 gangs

Pin number

5

Number of poles

3

Ip degree of protection

IP66

Fixing center

84 x 180 mm

Device mounting

surface

Width

95 mm

Height

191 mm

Quantity per set

set of 2

Type of packing

carton

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Device composition

round pin

Others

Package 1 bare product quantity

1

Dimension type

cover only

Network frequency

50 Hz

Motor m-rating as3133

M250

Network number of phases

3 phases

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9 cm

Package 1 width

9.5 cm

Package 1 length

19 cm

Package 1 weight

686 g
