Specifications
Design
Range of product
56 Series™
Product or component type
time switch
Colour tint
grey
Surface finish
gloss
Physical
Control type
mechanical
Installation direction
vertical
Width
95 mm
Height
95 mm
Depth
48 mm
Rated current
16 A
[ue] rated operational voltage
230/240 V
Number of gangs
1 gang
Mounting mode
surface mounted
Fixing center
84 mm
Ip degree of protection
IP66
Ambient air temperature for operation
-20...55 °C
Quantity per set
set of 4
Type of packing
carton
Eu rohs directive
Compliant with Exemptions
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Nominal power
1.35 kW
Network frequency
50 Hz
Network number of phases
1 phase
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.5 cm
Package 1 width
9.5 cm
Package 1 length
4.8 cm
Package 1 weight
297.5 g
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-

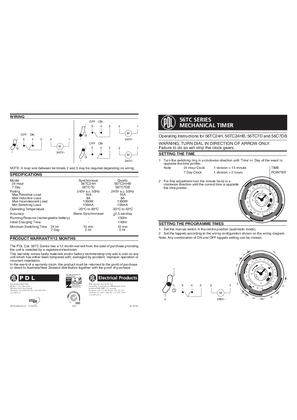

Quick Start Guide
