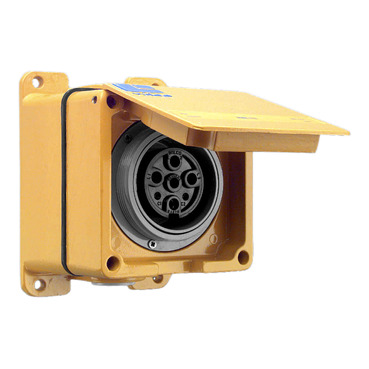

Metal Clad, Socket Outlet, 1 Gang 10A 500V, 5 Round Sockets, IP66, Cast Aluminium Material

Metal Clad, Socket Outlet, 1 Gang 10A 500V, 5 Round Sockets, IP66, Cast Aluminium Material

Item Number: WMB510

Datasheet

Product Dimensions

Width icon

Width115 mm

Height icon

Height150 mm

Depth icon

Depth110 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Wilco

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Device mounting

surface

Mounting mode

external mounting

[in] rated current

10 A

[ue] rated operational voltage

500 V 50/60 Hz conforming to EN 60309-2

Socket number

1

Depth

110 mm

Width

115 mm

Height

150 mm

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

cast aluminium

Others

Commercial status history

SESA301466 | Thu Aug 17 21:46:00 EDT 2023 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Voltage colour

black

Duration

7 h

Socket-outlet type

Q

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.0 cm

Package 1 width

11.5 cm

Package 1 length

15.0 cm

Package 1 weight

1030.0 g

Unit type of package 2

CAR

Number of units in package 2

9

Package 2 height

17.4 cm

Package 2 width

39.2 cm

Package 2 length

39.2 cm

Package 2 weight

9270.0 g
