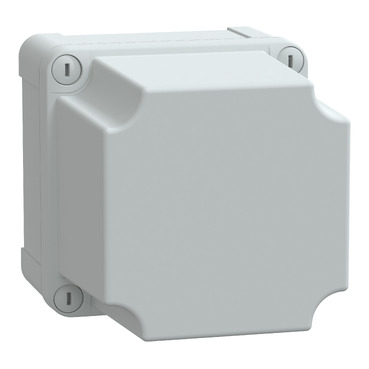

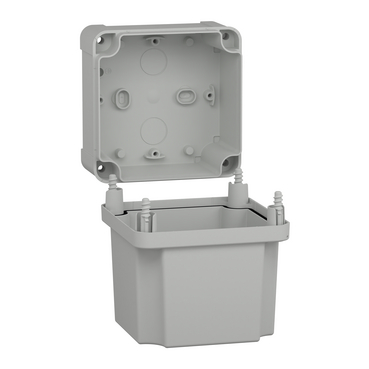

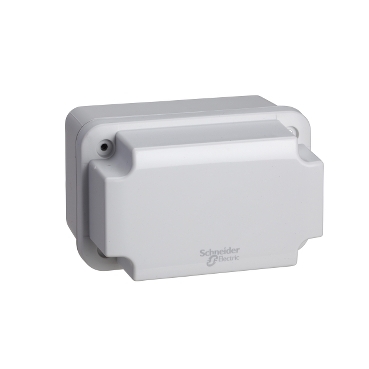

Thalassa ABS Box Opaque Cover IP66, IK07, RAL7035, H80

Item Number: NSYTBS111113H

1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width116 mm

Height116 mm

Depth133 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480165245	-
30	CAR	23295150850235	-

Specifications

Design

Range	PanelSeT
Device application	multi-purpose
Product or component type	industrial box
Colour	grey (RAL 7035)
Warranty	18 months

Physical

Height	116 mm
Width	116 mm
Depth	133 mm
Quantity per set	set of 2
Standards	IEC 62208
Product certifications	TÜV
Electrical insulation class	class II
Ip degree of protection	IP66 conforming to NEMA 4.4X
Ik degree of protection	IK07 conforming to IEC 62262
Ambient air temperature for storage	-15...40 °C
Ambient air temperature for operation	-25...60 °C
Net weight	0.24 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2312020EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Material

Device composition	1 body 1 cover 4 cover screw
Material	ABS with 45% of post-industrial recycled content

Others

Package 2 bare product quantity	2
Package 3 bare product quantity	30
Package 4 bare product quantity	360
Package 1 bare product quantity	1
Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	45 %
	At least in Europe
Weee label	No
Internal height	105 mm
Internal width	105 mm
Internal depth	125 mm
Enclosure mounting	wall mounted
Body type	one piece moulded
Type of front cover	high plain cover
Cover fixing	plastic screws
Lock type	captive screw flat outside sealed area
Removable parts	cover by captive screws
Fire resistance	650 °C conforming to IEC 60695-2-11
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.600 cm
Package 1 width	11.600 cm
Package 1 length	13.300 cm
Package 1 weight	240.000 g
Unit type of package 2	BB1
Number of units in package 2	2
Package 2 height	12.500 cm
Package 2 width	12.500 cm
Package 2 length	33.000 cm
Package 2 weight	493.000 g
Unit type of package 3	CAR
Number of units in package 3	30
Package 3 height	40.000 cm
Package 3 width	40.500 cm
Package 3 length	60.500 cm
Package 3 weight	8.640 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.8791390802477027
Carbon footprint of the manufacturing phase [a1 to a3]	0.9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.4764774440672176
Carbon footprint of the distribution phase [a4]	0.5 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.05611447937079818
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.4781229100328943
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.8898539137186128
Average percentage of recycled plastic content	45 %
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Installation Instruction
Technical illustration
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)
