Home ProductsIndustrialThalassaDoor

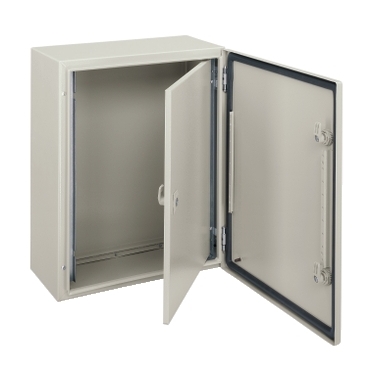

Thalassa Door Internal, Spacial WM enclosure, H600xW400, Steel

Item Number: NSYPIN64

1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480168550	-

Specifications

Design

Range	PanelSeT
Product or component type	door
Device application	multi-purpose
Colour	all faces: grey (RAL 7035)
Surface finish	polyester powder
Warranty	18 months

Physical

Range compatibility	PanelSeT CRN PanelSeT S3D PanelSeT S3X
Height	nominal: 600 mm
Width	nominal: 400 mm
Net weight	3.6 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1001004EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	1 door 4 fixing brackets 2 mounting uprights
Material	door: sheet steel

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	80
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Accessory / separate part category	enclosure accessory
Enclosure nominal dimensions	-
Mounting location	step slide front side
Lock type	lock 3 mm double bar
Number of locks	1
Adjustment	pitch 25 mm (on step slides)
Door type	internal plain
Door opening side	reversible
Maximum load	30 kg/m²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.000 cm
Package 1 width	56.500 cm
Package 1 length	36.500 cm
Package 1 weight	2.944 kg
Unit type of package 2	PAM
Number of units in package 2	80
Package 2 height	93.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	249.000 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	9d8b9f71-75cb-4d4a-a1a2-50559a3b422a
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Operating Manuals
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

PanelSeT S3D CRN S3X - H600xW400 - Internal door - 3D CAD

VERSION

1.0

DATE

09 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 6.1 MB

ZIP

SWM inner door H1xW6mm

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.5 MB

ZIP

Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide

VERSION

2.0

DATE

04 Mar 2024

REVISION

2.0

DOWNLOAD (ZIP) 7.8 MB

ZIP

PanelSeT S3D - Steel Wall Mounting Enclosure

VERSION

1.0

DATE

24 Jun 2026

REVISION

1.0

DOWNLOAD (ZIP) 389.5 KB

ZIP

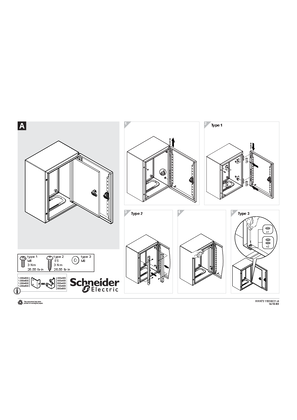

User manual for Spacial CRN(G) INNER DOOR
