Thalassa, Fixing Lugs, in ThermoPlastic PC and Screws Boxes, H 150xL150mm

Thalassa, Fixing Lugs, in ThermoPlastic PC and Screws Boxes, H 150xL150mm

Item Number: NSYAEFTB

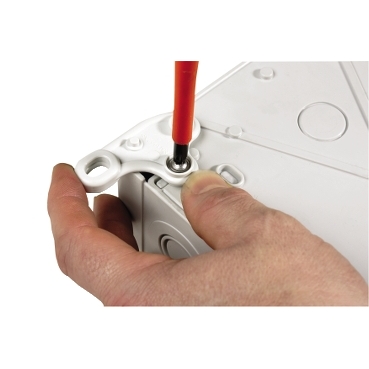

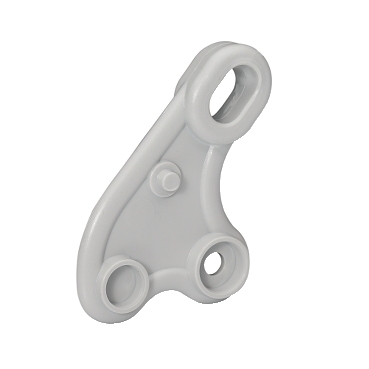

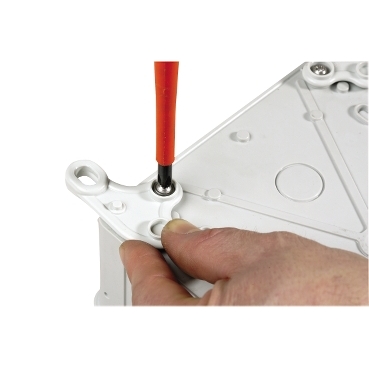

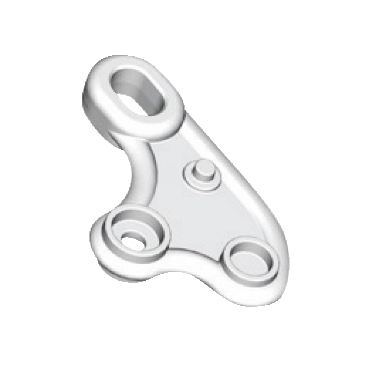

Thalassa TBP Fixing lugs in thermoplastic PC and screws. Enclosure dimensions is H is 116 x W is 116 x D is 62 mm. Wall fixing support. Mounting on top and bottom, on rear of the enclosure. Permanent permissible load 30 kg on the body, 10 kg on the cover. Plastic made. 4 x lug, screw incl.

Datasheet

Product Dimensions

Width icon

Width90 mm

Height icon

Height100 mm

Depth icon

Depth20 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Thalassa

Product or component type

wall fixing support

Device application

multi-purpose

Warranty

18 months

Physical

Range compatibility

  • Thalassa Thalassa TBP
  • Thalassa Thalassa TBS

Fixing mode

screwed - from the outside location

Height

100 mm

Width

90 mm

Depth

20 mm

Net weight

0.03 kg

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

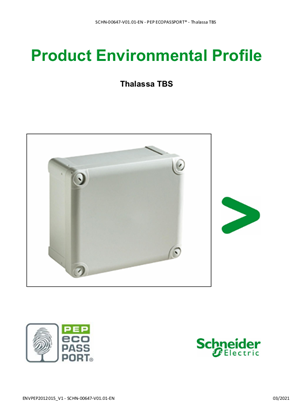

Environmental disclosure

ENVPEP2012015EN

Circularity profile

N/A

Material

Device composition

  • 4 lug
  • screw

Material

plastic

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Packaging without single use plastic

No

Packaging made with recycled cardboard

No

Package 3 bare product quantity

1600

Package 2 bare product quantity

100

Package 1 bare product quantity

1

Accessory / separate part category

fixing accessory

Enclosure nominal dimensions

- H: 116 mm W: 116 mm D: 62 mm

Mounting location

top and bottom, on rear of the enclosure

Permanent permissible load

  • 30 kg on the body
  • 10 kg on the cover

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.000 cm

Package 1 width

7.000 cm

Package 1 length

2.500 cm

Package 1 weight

30.000 g

Unit type of package 2

CAR

Number of units in package 2

100

Package 2 height

20.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.550 kg

Unit type of package 3

P12

Number of units in package 3

1600

Package 3 height

53.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

65.000 kg

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
