Thalassa, PC Box Opaque PC Cover, IP66, IK08, RAL7035, Int.H105W105D55, Ext.H116W116D62, H10

Home ProductsIndustrialThalassaPC Box Opaque PC Cover

Thalassa, PC Box Opaque PC Cover, IP66, IK08, RAL7035, Int.H105W105D55, Ext.H116W116D62, H10

Item Number: NSYTBP11116

Datasheet

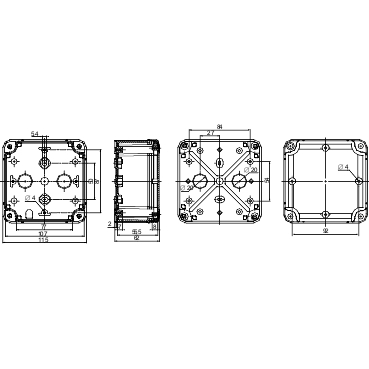

Product Dimensions

Width icon

Width116 mm

Height icon

Height116 mm

Depth icon

Depth62 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Thalassa

Device application

multi-purpose

Product or component type

industrial box

Colour

grey (RAL 7035)

Warranty

18 months

Physical

Height

116 mm

Width

116 mm

Depth

62 mm

Quantity per set

set of 5

Standards

IEC 62208|UL 508 A

Product certifications

TÜV|UL

Electrical insulation class

class II

Net weight

0.171 kg

Ip degree of protection

IP66 conforming to NEMA 4.4X

Ik degree of protection

IK08 conforming to IEC 62262

Ambient air temperature for storage

-15...60 °C

Ambient air temperature for operation

-25...80 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP2012016EN

Circularity profile

ENVEOLI2012016EN

Material

Device composition

1 body|1 cover|4 cover screw

Material

polycarbonate

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Package 3 bare product quantity

75

Package 4 bare product quantity

900

Product name

Thalassa TBP

Internal height

105 mm

Internal width

105 mm

Internal depth

55 mm

Enclosure mounting

wall mounted

Body type

one piece moulded

Type of front cover

low plain cover

Cover fixing

plastic screws

Lock type

captive screw flat outside sealed area

Removable parts

cover by captive screws

Mounting location

outdoor (with canopy or shelter and anticondensation valve)

Fire resistance

960 °C

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.200 cm

Package 1 width

11.600 cm

Package 1 length

11.600 cm

Package 1 weight

168.000 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

12.600 cm

Package 2 width

12.600 cm

Package 2 length

33.200 cm

Package 2 weight

840.000 g

Unit type of package 3

CAR

Number of units in package 3

75

Package 3 height

40.000 cm

Package 3 width

41.000 cm

Package 3 length

60.000 cm

Package 3 weight

13.584 kg

Green premium status for reporting

Green Premium product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
