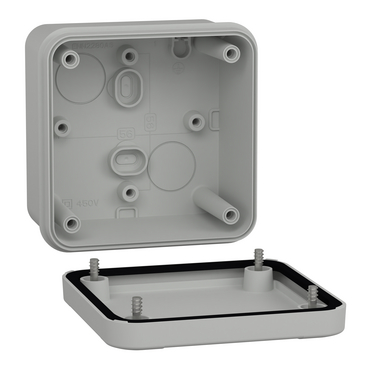

Thalassa PC Box Opaque PC Cover IP66, IK08, RAL7035, Int.H80W80D65, Ext.H89W89D51, H10

Item Number: NSYTBP885

1 PCE 1

Where To Buy

Datasheet

Download

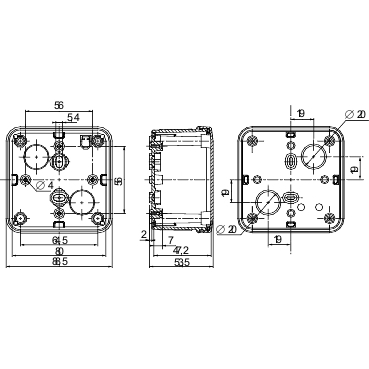

Product Dimensions

Width89 mm

Height89 mm

Depth54 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480165597	-

Specifications

Design

Range	PanelSeT
Device application	multi-purpose
Product or component type	industrial box
Colour	grey (RAL 7035)
Warranty	18 months

Physical

Height	89 mm
Width	89 mm
Depth	54 mm
Quantity per set	set of 5
Standards	UL 508 A IEC 62208
Product certifications	TÜV UL
Electrical insulation class	class II
Net weight	0.108 kg
Ip degree of protection	IP66 conforming to NEMA 4.4X
Ik degree of protection	IK08 conforming to IEC 62262
Ambient air temperature for storage	-15...60 °C
Ambient air temperature for operation	-25...80 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2012016EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Material

Device composition	1 body 1 cover 4 cover screw
Material	polycarbonate

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	5
Legacy weee scope	Out
	At least in Europe
Package 3 bare product quantity	160
Package 4 bare product quantity	1920
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	No
Product name	PanelSeT TBP
Internal height	80 mm
Internal width	80 mm
Internal depth	47 mm
Enclosure mounting	wall mounted
Body type	one piece moulded
Type of front cover	low plain cover
Cover fixing	metal screws
Lock type	captive screw flat outside sealed area
Removable parts	cover by captive screws
Mounting location	outdoor (with canopy or shelter and anticondensation valve)
Fire resistance	960 °C
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.400 cm
Package 1 width	8.900 cm
Package 1 length	8.900 cm
Package 1 weight	105.000 g
Unit type of package 2	BB1
Number of units in package 2	5
Package 2 height	9.300 cm
Package 2 width	9.400 cm
Package 2 length	29.300 cm
Package 2 weight	527.000 g
Unit type of package 3	CAR
Number of units in package 3	160
Package 3 height	40.000 cm
Package 3 width	41.000 cm
Package 3 length	60.000 cm
Package 3 weight	17.200 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.5983810223106645
Carbon footprint of the manufacturing phase [a1 to a3]	0.6 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.20845888177940763
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.02073832004798274
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.13618757649171473
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.9637658006297696
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
End of life manual availability	ENVEOLI2012016EN
Take-back	No
Warranty (in months)	18
