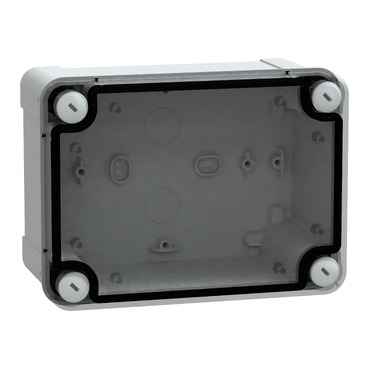

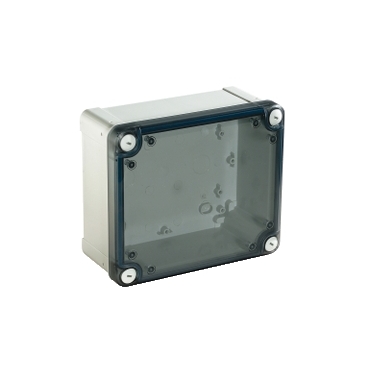

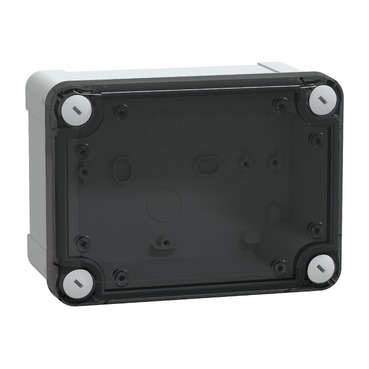

Thalassa, PC Box Transparent Cover, IP66, IK08, RAL7035, Int.H150W105D80, Ext.H164W121D87, H20

Home ProductsIndustrialThalassaPC Box Transparent Cover

Thalassa, PC Box Transparent Cover, IP66, IK08, RAL7035, Int.H150W105D80, Ext.H164W121D87, H20

Item Number: NSYTBP16128T

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width121 mm

Height icon

Height164 mm

Depth icon

Depth87 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Thalassa

Device application

multi-purpose

Product or component type

industrial box

Colour

grey (RAL 7035)|transparent

Warranty

18 months

Physical

Ambient air temperature for operation

-25...80 °C

Ambient air temperature for storage

-15...60 °C

Ik degree of protection

IK08 conforming to IEC 62262

Ip degree of protection

IP66 conforming to NEMA 4.4X

Height

164 mm

Width

121 mm

Depth

87 mm

Quantity per set

set of 2

Standards

UL 508 A|IEC 62208

Product certifications

TÜV|UL

Electrical insulation class

class II

Net weight

0.34 kg

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2012016EN

Circularity profile

ENVEOLI2012016EN

Material

Device composition

1 body|1 cover|4 cover screw

Material

polycarbonate

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

32

Package 3 bare product quantity

384

Fire resistance

960 °C

Product name

Thalassa TBP

Internal height

150 mm

Internal width

105 mm

Internal depth

80 mm

Enclosure mounting

wall mounted

Body type

one piece moulded

Type of front cover

low transparent cover

Cover fixing

plastic screws

Lock type

captive screw flat outside sealed area

Removable parts

cover by captive screws

Mounting location

outdoor (with canopy or shelter and anticondensation valve)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.700 cm

Package 1 width

12.100 cm

Package 1 length

16.400 cm

Package 1 weight

365.000 g

Unit type of package 2

CAR

Number of units in package 2

32

Package 2 height

40.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

12.700 kg

Unit type of package 3

P12

Number of units in package 3

384

Package 3 height

135.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

165.000 kg

Green premium status for reporting

Green Premium product

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
