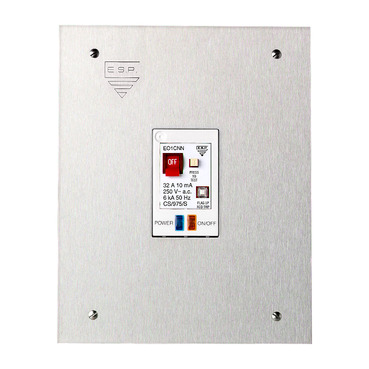

Medilec ESP Series Metal Plate Combination RCD/MCBs, 240VAC, 32A, 10mA
Item Number: E01/32/2
Datasheet
Close
Specifications
Design
Range
- Medilec
- Clipsal - Series E01
Product or component type
residual current breaker with overcurrent protection (RCBO)
Product brand
Clipsal
Physical
[in] rated current
32 A
[ue] rated operational voltage
240 V AC
Protection type
short time short-circuit protection
Mounting mode
flush mounting
Standards
AS/NZS 3190
Ambient air temperature for operation
-10...55 °C
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Weee label
N/A
Outside of Europe
Poles description
2P
Earth-leakage sensitivity
10 mA
Earth-leakage protection class
class AC
Network frequency
50 Hz
Size
220 x 175 x 70 mm conforming to DIN 43880
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1.000 kg
Sustainable packaging
No
Scip number
c6f2fabe-d5ba-4588-bd03-c90f7def1381
Warranty (in months)
18
