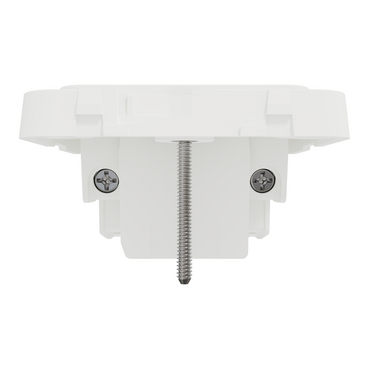

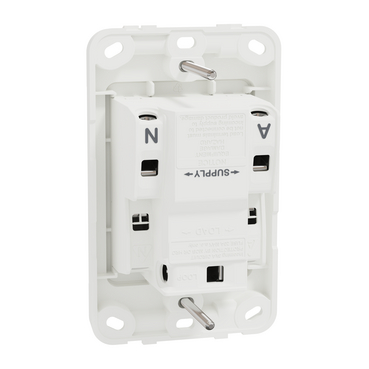

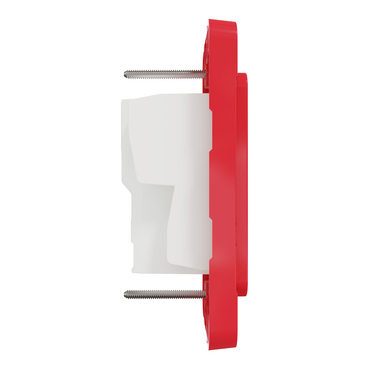

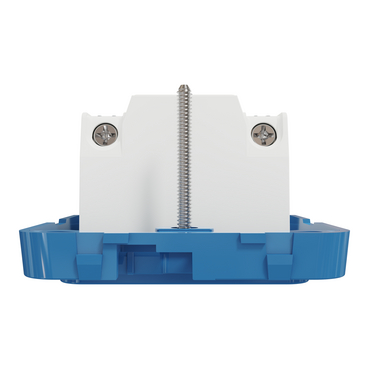

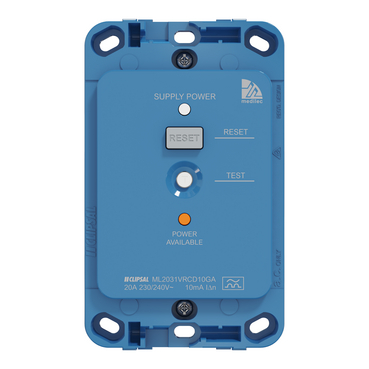

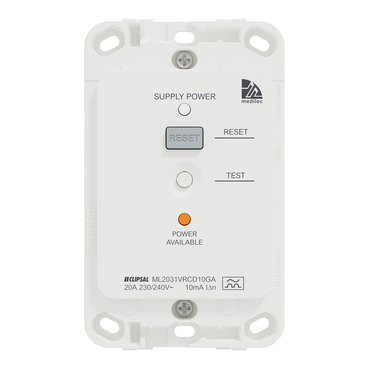

Medilec, RCD grid, RCD trip 10mA, 20A, vertical, antibacterial

Home ProductsMedical Electrical EquipmentMedilecRCD grid

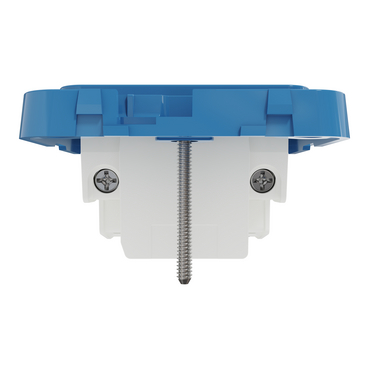

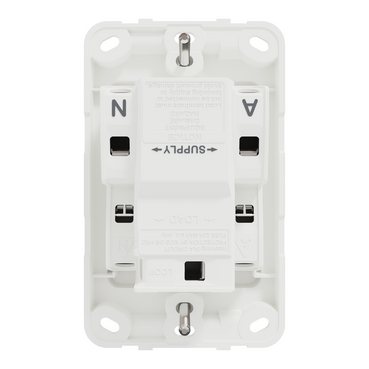

Medilec, RCD grid, RCD trip 10mA, 20A, vertical, antibacterial Dark Blue

Item Number: ML2031VRCD10GA-DB

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width68.3 mm

Height icon

Height112.5 mm

Embedding depth icon

Embedding depth30.8 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Medilec

Range

Medilec

Product or component type

RCD grid

Product brand

Clipsal

Device application

residual current device

Colour tint

white (WE)

Colour code

WE

Surface finish

glossy

Physical

Device presentation

grid plate

Outlet poles configuration

2P

Fixing mode

by screws

Local signalling

LED indicator

Device mounting

flush

Mounting position

vertical

Type of installation

indoor installation

[ue] rated operational voltage

230...240 V AC

[in] rated current

20 A

Clamping connection capacity

  • 4 x 2.5 mm²
  • 3 x 4 mm²

Embedding depth

30.8 mm

Depth

45.9 mm

Height

112.5 mm

Width

68.3 mm

Net weight

139 g

Ip degree of protection

IP20

Product certifications

RCM

Standards

  • AS/NZS 3100
  • AS/NZS 3190

Relative humidity

10...95 %

Ambient air temperature for operation

0...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2412003EN

Circularity profile

ENVEOLI2412003EN

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

32

Commercial status history

  • SESA785182
  • Tue Apr 15 09:29:00 CEST 2025
  • From Unitary Local
  • From 02 to 08

Package 3 bare product quantity

1536

Main colour tint

white

Network frequency

50 Hz

Distance between centers

83 mm

Earth-leakage protection class

  • type I
  • type A

Trip unit rating

10 mA

Standards application

safety

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.1 cm

Package 1 width

8.1 cm

Package 1 length

12.6 cm

Package 1 weight

164 g

Unit type of package 2

CAR

Number of units in package 2

32

Package 2 height

22.4 cm

Package 2 width

26.1 cm

Package 2 length

33.5 cm

Package 2 weight

4.9 kg

Unit type of package 3

PAL

Number of units in package 3

1536

Package 3 height

95 cm

Package 3 width

114 cm

Package 3 length

114 cm

Package 3 weight

259.5 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

181.39731183986765

Global warming ; total life cycle​

181 kg CO2 eq.

Minimum percentage of recycled plastic content

0
