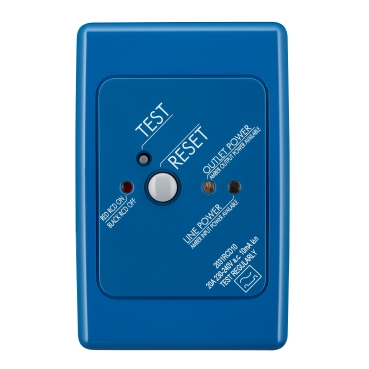

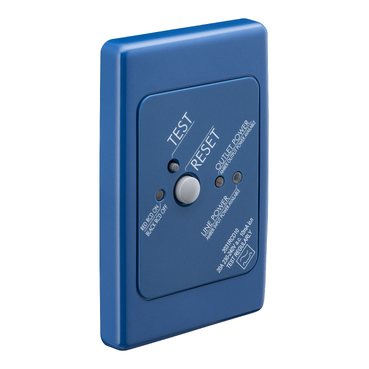

Medilec Residual Current Device 2P 10mA 20A 250V | Dark Blue
Item Number: ML2031VRCD10-DB
Datasheet
Specifications
Design
| Range of product |
|
|---|---|
| Product or component type | residual current device |
| Product brand | Clipsal |
Physical
| [in] rated current | 20 A |
|---|---|
| [ue] rated operational voltage | 250 V AC |
| Standards | AS/NZS 3190 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
