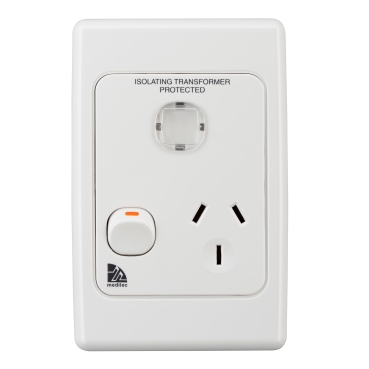

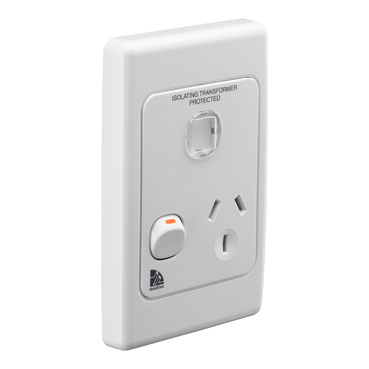

Medilec Switched Socket Outlet Vertical, Double Pole, Isolated Label | White Electric
Item Number: ML2015VDI-WE
Datasheet
Specifications
Design
| Range of product |
|
|---|---|
| Product or component type | switched socket |
| Product brand | Clipsal |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | vertical |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Length | 116 mm |
| Width | 76 mm |
| Standards | AS/NZS 3112 |
Material
| Material | plastic |
|---|
