Specifications
Design
| Range of product | Actassi |
|---|---|
| Range | Actassi |

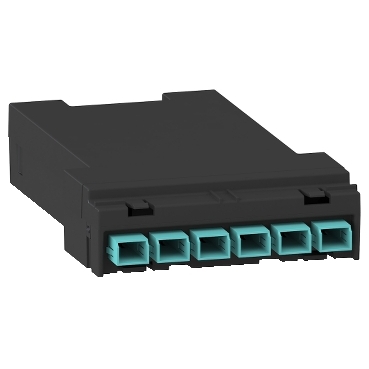

| Product or component type | fibre cassette |
Physical
| Quantity per set | 4 |
|---|---|
| Range compatibility |
|
| Provided equipment | 6 duplex multi-mode adaptor LC |
| Type of installation | indoor |
| Length | 104.5 mm |
| Height | 32 mm |
| Width | 159.5 mm |
| Ambient air temperature for storage | -20...65 °C |
| Ambient air temperature for operation | 0...55 °C |
| Product certifications | UL |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP090710EN |
| China rohs regulation | X |
| Eu rohs directive | Compliant |
Material
| Material | ABS (acrylonitrile butadiene-styrene) |
|---|
Documents & downloads
Filter items
-
All
-
Installation Instruction
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
ZIP
Actassi Flex and iFlex accessories QGH18792-03 installation guide
VERSION
1.1
DATE
29 Sep 2023
REVISION
1.1
DOWNLOAD (ZIP) 11.1 MB
ZIP
Actassi iFlex Panel + Actassi iFlex management ControllerQGH30072-05 installation guide
VERSION
1.1
DATE
29 Sep 2023
REVISION
1.1
DOWNLOAD (ZIP) 21.3 MB
ZIP
Actassi- Flex Panel-Instruction Sheet (EN)
VERSION
1.1
DATE
29 Sep 2023
REVISION
1.1
DOWNLOAD (ZIP) 26.2 MB
ZIP
Actassi iFlex Panel + Actassi iFlex management ControllerQGH30072-04 installation guide
VERSION
1.1
DATE
08 May 2023
REVISION
1.1
DOWNLOAD (ZIP) 17.9 MB
