Actassi HD Panel Plate 12 Adaptors LC DX MM

Item Number: ACTFM1UF2LC12PM

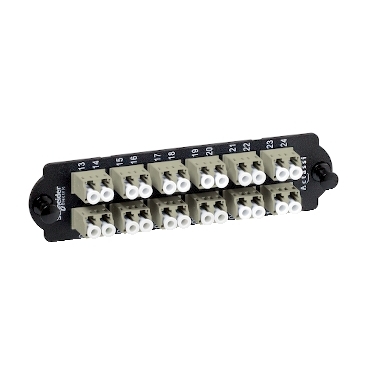

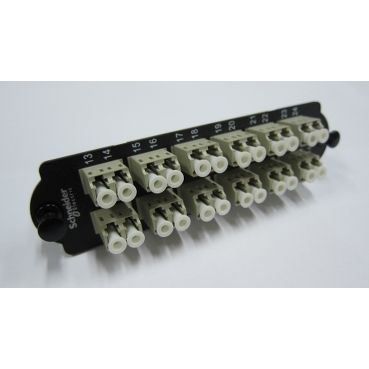

This HD panel adapter plate is equipped with push-pull rivets for quick fixation. It is made in metal, black power coating plus explicit port ID numbers and Schneider logo. The plate is loaded with twelve LC duplex blue adapters for multimode OM2/OM3/OM4. The adapter is with zirconia ceramic material furrule that suitable to connect and align LC optic connectors for high performance applications.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width120 mm

Height icon

Height35 mm

Depth icon

Depth5.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Actassi

Product or component type

cover plate with adapters

Colour tint

black

Physical

Provided equipment

12 duplex multi-mode adaptor for LC

Fixing mode

snap-in

Width

120 mm

Height

35 mm

Depth

5.6 mm

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1303001

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

74

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Accessory / separate part destination

fibre optic panel

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.700 cm

Package 1 width

4.700 cm

Package 1 length

15.100 cm

Package 1 weight

63.000 g

Unit type of package 2

S03

Number of units in package 2

74

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.073 kg

Total lifecycle carbon footprint

2 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.9178553719008267

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.010077396694214877

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.029799390495867772

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.037665278925619834

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

1.9953974380165291

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
