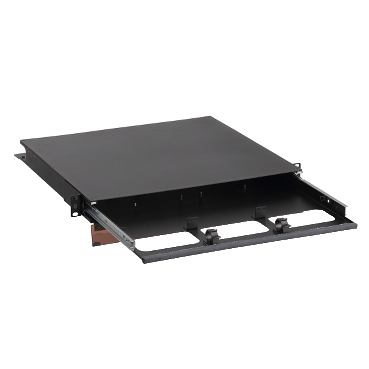

Actassi Panel 19INC, 1U, Unloaded, Max 3 Plates

Home ProductsNetwork ConnectivityActassiPanel

Actassi Panel 19INC, 1U, Unloaded, Max 3 Plates

Item Number: ACTMP1U

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width482 mm

Height icon

Height44 mm

Depth icon

Depth300 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Actassi

Product or component type

fibre patch panel

Product compatibility

  • 3 optic cassette
  • 3 adaptor plate

Physical

Device presentation

empty

Integrated connection type

LC

Height

44 mm

Width

482 mm

Depth

300 mm

Standards

  • EIA-310D
  • TIA/EIA-568

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1303001

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

16

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Number of optic fibre

72

Number of port

72

Number of rack unit

1U

Targeted region

  • Asia Pacific.
  • Europe

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

14.500 cm

Package 1 width

49.000 cm

Package 1 length

57.500 cm

Package 1 weight

4.500 kg

Unit type of package 2

PAL

Number of units in package 2

16

Package 2 height

120.000 cm

Package 2 width

80.000 cm

Package 2 length

160.000 cm

Package 2 weight

107.288 kg

Total lifecycle carbon footprint

64 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

54.829156668977085

Carbon footprint of the manufacturing phase [a1 to a3]

55 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

1.2817772228004503

Carbon footprint of the distribution phase [a4]

1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

1.4316479935190076

Carbon footprint of the installation phase [a5]

1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.0482961839955878

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

5.943121022700371

Carbon footprint of the end-of-life phase [c1 to c4]

6 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

63.557429913930896

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
