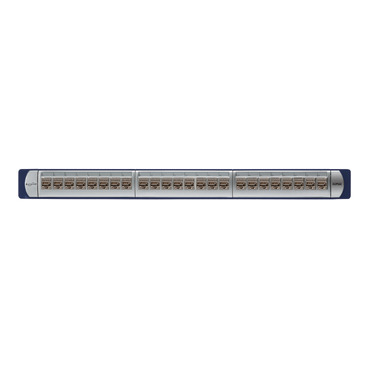

Actassi Patch Panel 24 Port Cat6A FTP

Item Number: RJ6AF/24PP

1 PCE 1

19 inch copper panels with 24 keystone shielded connectors in 1U height. Supplied with 24 STP Cat6A keystone tool-less connectors for easy installation. Individual snap-in connectors for easy maintenance. Complete with all mounting and cable fixing hardware. Removable rear cable management tray. Compatible with standard 19 inch equipment frames. Individual port labelling.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554717698	-
10	CAR	19311554717695	-

Specifications

Design

Product brand	Clipsal
Range of product	Actassi

Physical

Connector type	RJ45
Mounting support	19" rack
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1303001EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Number of modules	8
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.3 cm
Package 1 width	13.0 cm
Package 1 length	50.0 cm
Package 1 weight	1496.0 g
Total lifecycle carbon footprint	100 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	54.6526993159343
Carbon footprint of the manufacturing phase [a1 to a3]	55 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	19.8181353262659
Carbon footprint of the distribution phase [a4]	20 kg CO2 eq.
Carbon footprint of the installation phase [a5]	1.7059773260712299
Carbon footprint of the installation phase [a5]	2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	23.4519405614431
Carbon footprint of the end-of-life phase [c1 to c4]	23 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	99.6287525297147
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
