Specifications
Design
Range
Actassi
Product or component type

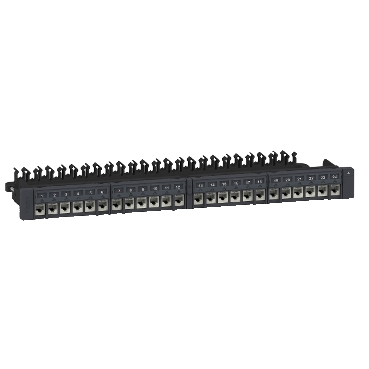

patch panel
Product destination
data center
Physical
Provided equipment
adaptor plate|connector 24 6 UTP
Range compatibility
Actassi Actassi iFLEX copper front cover|Actassi Actassi iFLEX upgrade kit
Mounting support
19" rack
Type of footprint
S-110 keystone
Type of installation
indoor
Length
482.6 mm
Width
114.5 mm
Height
44.45 mm
Ambient air temperature for operation
0...55 °C
Ambient air temperature for storage
-20...65 °C
Standards
ISO/IEC 11801 Ed.2, 2002|TIA/EIA-568-C.2|AS/NZS 3080:2003
Product certifications
UL
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
X
Environmental disclosure
ENVPEP090710EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Product name
Actassi FLEX
Number of port
24 port of UTP
Number of rack unit
1U
Targeted region
Asia Pacific.
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.1 cm
Package 1 width
17 cm
Package 1 length
51 cm
Package 1 weight
1.7 kg
