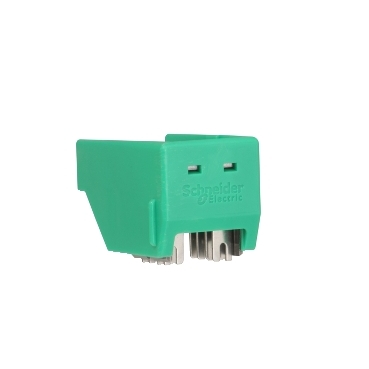

Actassi, Quick termination tool module

Item Number: ACTTLQTBCM

1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	4892552893942	-

Specifications

Design

Range of product	Actassi
Product or component type	module
Colour tint	green
Product destination	quick termination tool

Physical

Cable outer diameter	0.4...0.6 mm (conductor) 0.9...1.1 mm (insulation)
Length	40 mm
Height	27 mm
Width	26 mm

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4 cm
Package 1 width	5 cm
Package 1 length	12 cm
Package 1 weight	0.02 kg
Sustainable packaging	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Actassi

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 3.8 MB
