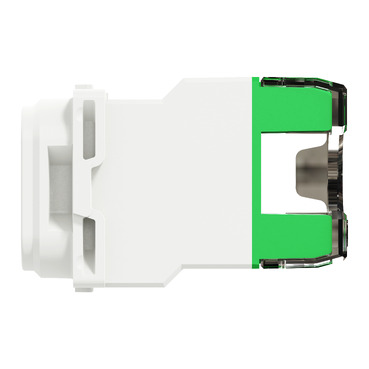

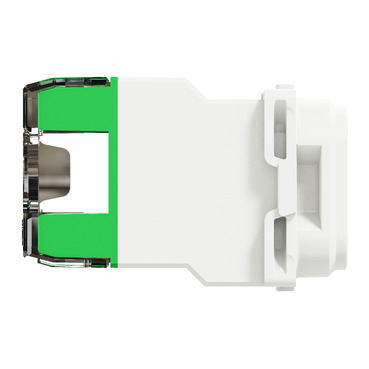

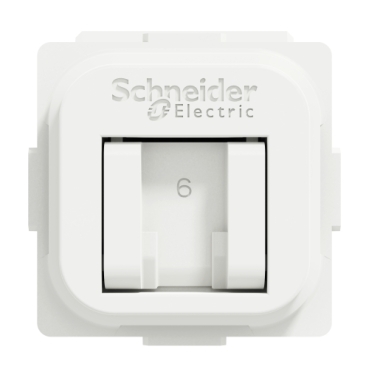

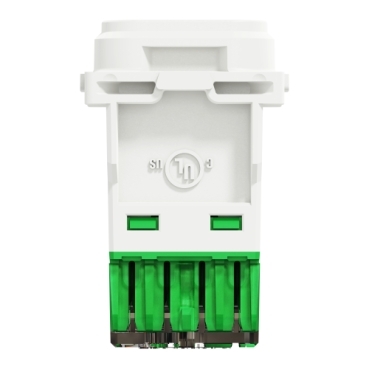

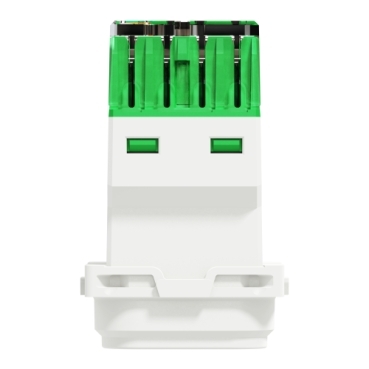

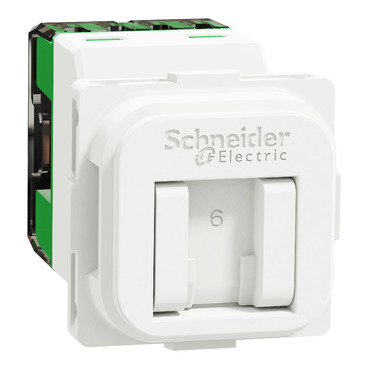

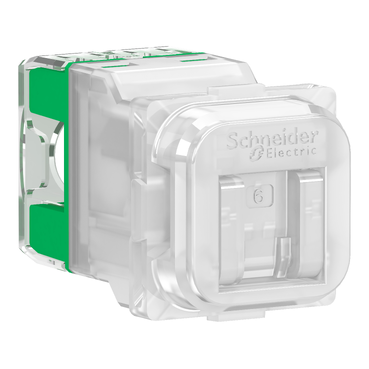

Actassi, S-110 Connector, RJ45, 40M, Unshield, Cat6, Shutter

Actassi, S-110 Connector, RJ45, 40M, Unshield, Cat6, Shutter Translucent

Item Number: VDIB17396UTN

Module RJ45 CAT6 unshielded 40Series Format. Note: Requires installation by an appropriately licenced electrician.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Actassi

Product or component type

RJ45 connector

Colour tint

connector housing: translucent (ABS + PC)|shutter: translucent (ABS + PC)|top cover: transparent (PC)|IDC cover: green (PC)

Colour code

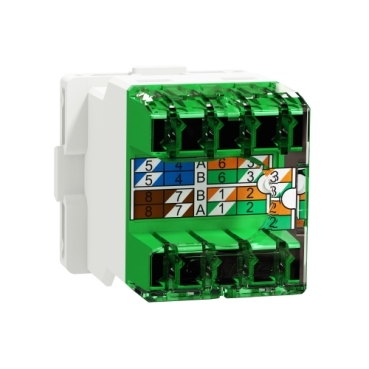

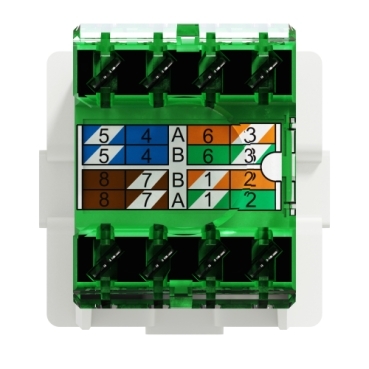

TIA-568A/B

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Device presentation

two piece design

Quantity per set

set of 1

[in] rated current

1.5 A at 25 °C

Permissible voltage

1000 V AC/DC peak, between contacts

Contact resistance

20 mOhm

Insulation resistance

initial insulation resistance: > 500 MOhm at 100 V DC

Awg gauge

AWG 24...AWG 23

Mechanical durability

750 cycles

Pin number

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Tool type

punch down tool|quick termination tool

Cable outer diameter

0.9...1.4 mm

Cable shielding type

UTP

Communication network category

6

Communication network type

1000BASE-T

Communication port protocol

PoE+ 30W (Power over Ethernet Plus)|PoE+ (Power over Ethernet)|PoE 15W (Power over Ethernet)|4PPoE 100W (Power over Ethernet)

Connections - terminals

insulation displacement contact

Transmission frequency

1...250 MHz

Type of footprint

S-110 keystone

Height

0.072 ft|22 mm

Length

36 mm|0.12 ft

Width

16 mm|0.052 ft

Ambient air temperature for operation

-10...60 °C|14...140 °F

Ambient air temperature for storage

-40...70 °C|-40...158 °F

Climatic withstand

40/070/21 (21 days)

Product certifications

UL listed

Standards

ANSI/TIA-568-C.2|IEC 60603-7-4|ISO/IEC 11801:2011 Ed.2.2|AS/NZS 3080:2003|UL 1863

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1806006EN

Circularity profile

N/A

Others

Commercial status history

SESA301466 | Fri Aug 16 21:22:00 EDT 2024 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Product name

Actassi S-110

Flame retardance

UL94-V0 conforming to UL listed

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.2 cm

Package 1 width

10.5 cm

Package 1 length

14.5 cm

Package 1 weight

12 g

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
